VENTUM NS1 RED AXS

No reviews yet Write a Review

We believe in climbing big mountains and dauntingly big rides, and that both should be accomplished as fast as possible. That crosswinds and corners are opportunities, not obstacles — and thus should be dealt with at eye-watering speed.



We believe that a good road bike should be able to handle all of the above and then some, so we built the NS1.



The Ventum NS1 Rival AXS is our high-performance road racing machine. Built with a SRAM Rival AXS electronic drivetrain and ZIPP 303s carbon wheels, it’s our expression of what a road bike should be.



READ MORE

$8,899.00
CUSTOMIZE YOUR FIT (OPTIONAL)+
Do you want a specific crank length and/or handlebar size? Our bikes come stock with touchpoints that fit most riders, but you can choose your bar/stem size and crank length for a small fee. Questions? Reach out to support for help.
WHAT IS THE STOCK FIT?
Finance with Klarna
Pay over time with monthly financing*
*Monthly financing through Klarna issued by WebBank.
Ride-Ready Shipping
New bike day, shipped direct to your door. Each bike is pre-assembled and tuned by a professional mechanic before being packed into our custom ride-ready box (lower 48 US States only). Assembly is easy — just attach the wheels and insert the seatpost.
30-Day Returns
Change your mind? Return your bike within 30-days of purchase.
Limited Lifetime Warranty
We stand behind our bikes. Ventum offers a limited lifetime warranty on all of our frames, forks, and seat posts to the original owner which covers against defects in materials and workmanship.
Selected Colors is
Hurry up! only left

Copy link:

Image coming soon

VENTUM NS1 RED AXS

$8,899.00
Choose Options
Choose Options
OVERVIEW FEATURES SPECS SIZING GEOMETRY SUPPORT
OVERVIEW+
FEATURES+
SPECS+
SIZING+
GEOMETRY+
SUPPORT+

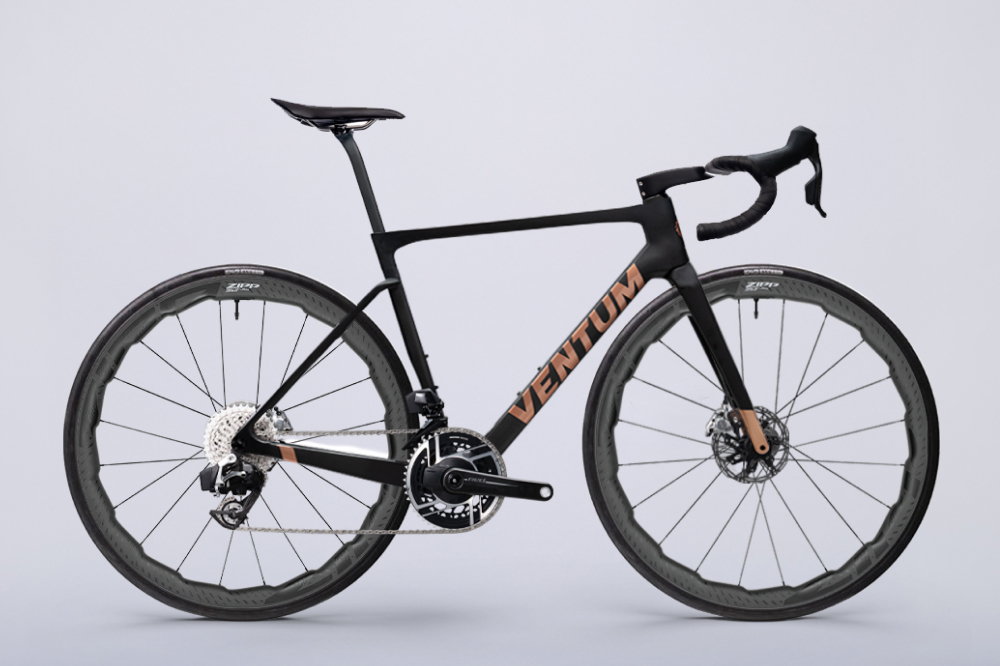

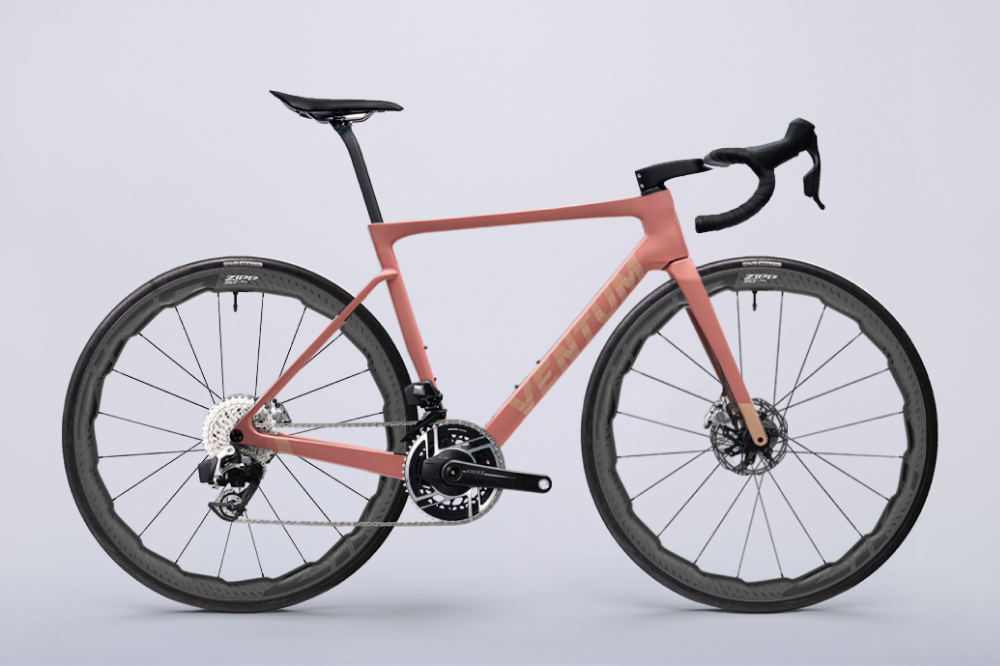

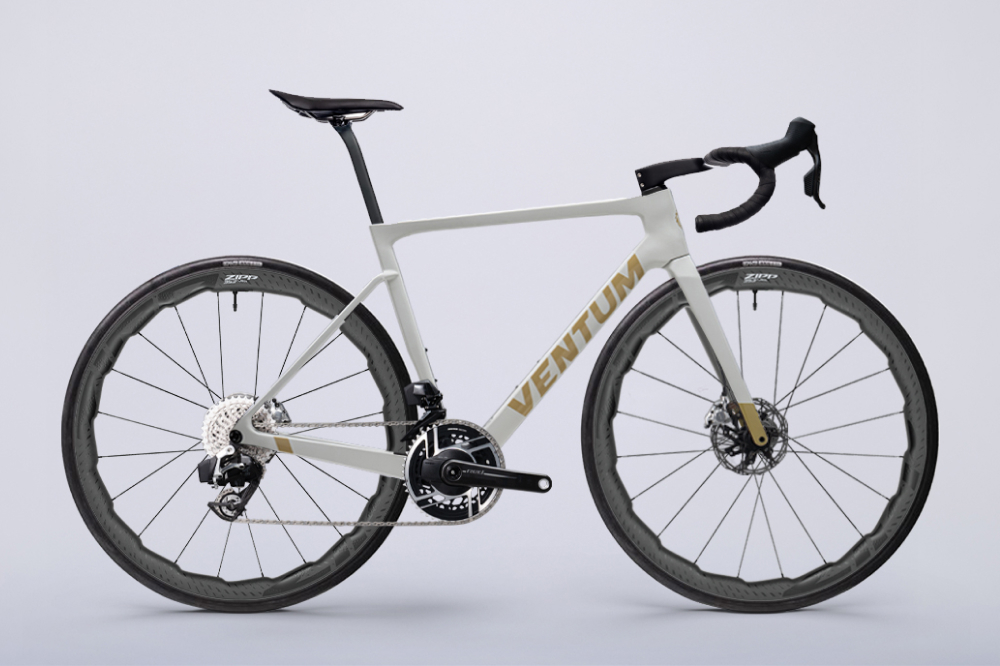

ABOUT THE VENTUM NS1 RED AXS

An all-rounder with aerodynamic elements, a lightweight all-carbon frame, and beautiful styling, the NS1 is a bike in balance. Its super power is its handling: Our engineering team leaned on their collective decades of experience in carbon fiber design to carefully craft the carbon layup of the NS1 — creating a frame that’s remarkably lively yet confidence-inspiring at high speed.



The geometry is aggressive: Low and long for riders looking to get their torsos out of the wind and for an aggressive pedaling position. The frame also features a Universal Derailleur Hanger (UDH) for ease of replacement and compatibility with SRAM’s direct mount system. In the name of versatility, we also gave the NS1 tire clearance up to 700x35c. Its handling, stability, and larger-than-average tire clearance means it's at home anywhere from smooth ribbons of tarmac to friendlier gravel.



This version of the NS1 comes with the SRAM Rival AXS 12-speed electronic groupset. It includes ZIPP 303s carbon fiber wheels and a ZIPP alloy cockpit.



WHAT YOU GET

• SRAM Red AXS 12-speed electronic drivetrain
• ZIPP 303 Firecrest carbon race wheels

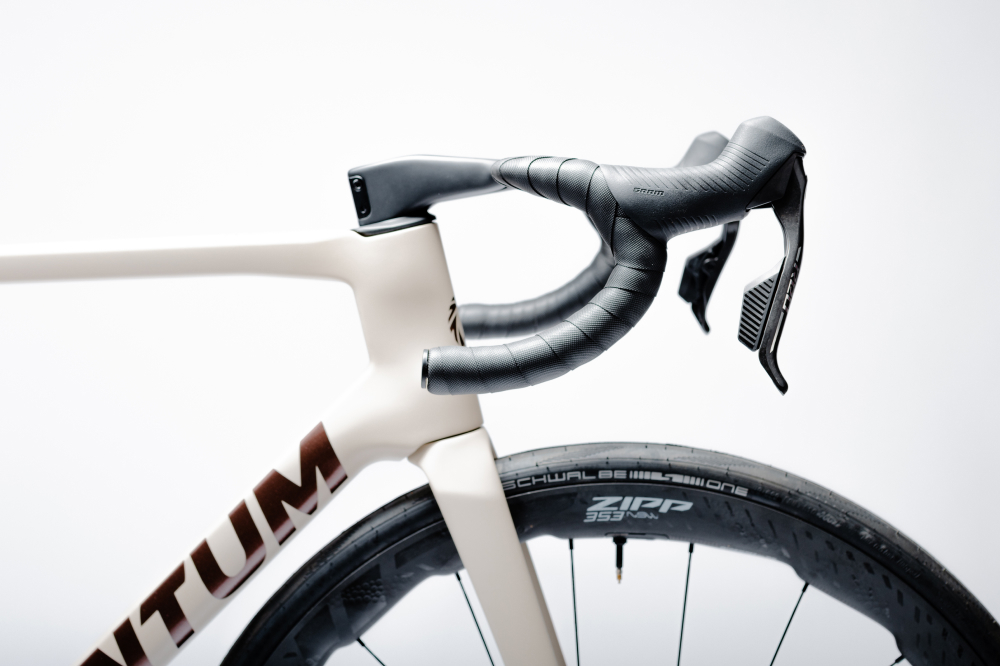

• ZIPP alloy cockpit
• A full carbon fiber frame with intuitive internal cable routing
• Tire clearance to 700x35c


VENTUM CUSTOMER SUPPORT + RIDE READY SHIPPING



Each Ventum bike begins life at our facility in Heber City, Utah, at the doorstep of some of the best riding this side of… anywhere.



No matter the build, any bike we send out into the world is first built, checked, and thoroughly tuned by a professional mechanic. With a bill of good health, it’s then repackaged into a specially-made ride-ready box designed to transport the bike to the rider with as little disassembly as possible. In the end, all you need to do is attach the front wheel, insert the seat post, and dial in your fit.



We’re here to help along the way. From picking your bike to support down the road, the Ventum customer support team is here for anything you need.

VENTUM NS1 RED AXS FEATURES

A MODERN CLASSIC


We built the NS1 with the belief that you can have the perfect do-it-all road bike.

You can race it, train on it, climb high, corner hard, and go long. It’ll do anything you want very, very well. It’s our expression of what every road bike should be.

The bike is designed to be stiff, but compliant in all the right places; light, but still aerodynamic; aggressive, but forgiving. You’ll know it when you feel it, the NS1 is the perfect one-and-done road bike.

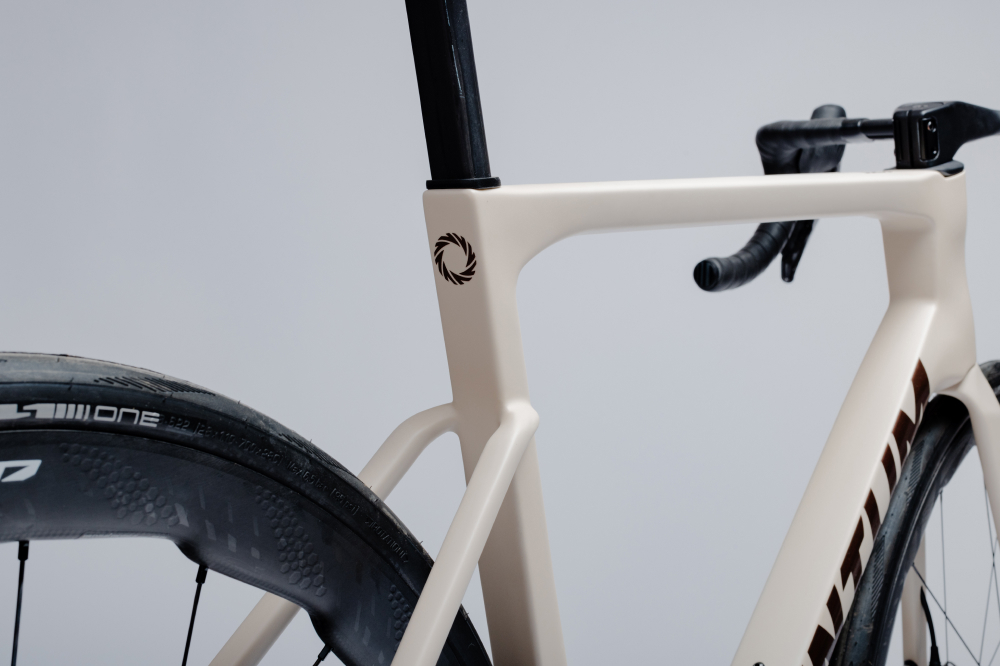

STIFF, LIGHT, CONFIDENTLY QUICK



Our engineering team set out to strike a balance between weight, handling, stiffness, and aerodynamics; because, despite what some may tell you, the best bike is a game of balance.



We leaned on a collective decades of experience in designing carbon fiber bicycles to refine the NS1’s layup, strategically stiffening some areas while shaving weight and adding forgiveness elsewhere. The result is our expression of what a modern road bike should be — simple, fast, and well rounded.

TIRE CLEARANCE TO 700x35c


The NS1 can accommodate tires up to 700x35c, giving you ample options for tires that are more aero, more forgiving, and more versatile.



Among our pros, the NS1’s additional tire clearance has even made it a choice option for mixed-surface races like the Belgian Waffle Ride. Put a pair of file tread 35c tires on, and you’ve got a bike that’s light and nimble on pavement and more than capable on dirt.



NS1 - SRAM RED AXS - SPECIFICATIONS

FRAMESET
FRAME
Ventum GS1 gravel frame | Full carbon fiber construction | Internal cable routing | T47 BB | flat mount disc brake
FORK
Ventum GS1 gravel fork | Tapered carbon steerer | Internal brake routing | Flat mount disc brake | Carbon dropouts
WHEELS
FRONT WHEEL
ZIPP 303s carbon fiber front wheel | Tubeless disc brake | 45mm rim depth | Hookless rims | 23mm ID
REAR WHEEL
ZIPP 303s carbon fiber rear wheel | Tubeless disc brake | 45mm rim depth | Hookless rims | 23mm ID | XDR driver
TIRES
IRC Boken Doublecross 42 | 700x42mm | Installed tubeless
MAX TIRE SIZE
700x48mm with mud clearance
DRIVETRAIN
SHIFTERS
SRAM RED eTap AXS HRD shifters | Electronic shifting | Hydraulic braking
FRONT DERAILLEUR
N/A | Braze-on frame cover installed
REAR DERAILLEUR
SRAM XX SL Eagle Transmission Rear Derailleur | 12-speed | Electronic shifting
CRANK

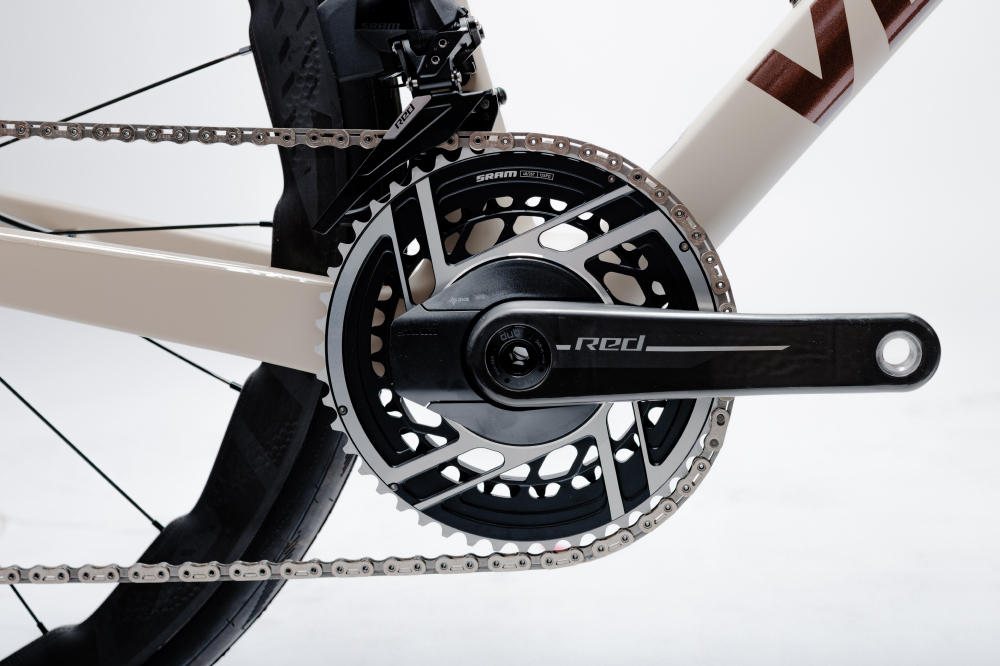

XS: SRAM RED 1 Crankset | 42T chainring | 165mm crank length
S: SRAM RED 1 Crankset | 42T chainring | 170mm crank length
M: SRAM RED 1 Crankset | 42T chainring | 172.5mm crank length
M/L: SRAM RED 1 Crankset | 42T chainring | 172.5mm crank length
L: SRAM RED 1 Crankset | 42T chainring | 172.5mm crank length
XL: SRAM RED 1 Crankset | 42T chainring | 175mm crank length
BOTTOM BRACKET
SRAM DUB T47
CASSETTE
SRAM XX SL Eagle Tranmission Cassette | XS-1299 | 10-52T
CHAIN
XX Eagle Transmission Flattop chain | 12-speed
MAX CHAINRING SIZE
46T for 1x drivetrains
COMPONENTS
SADDLE

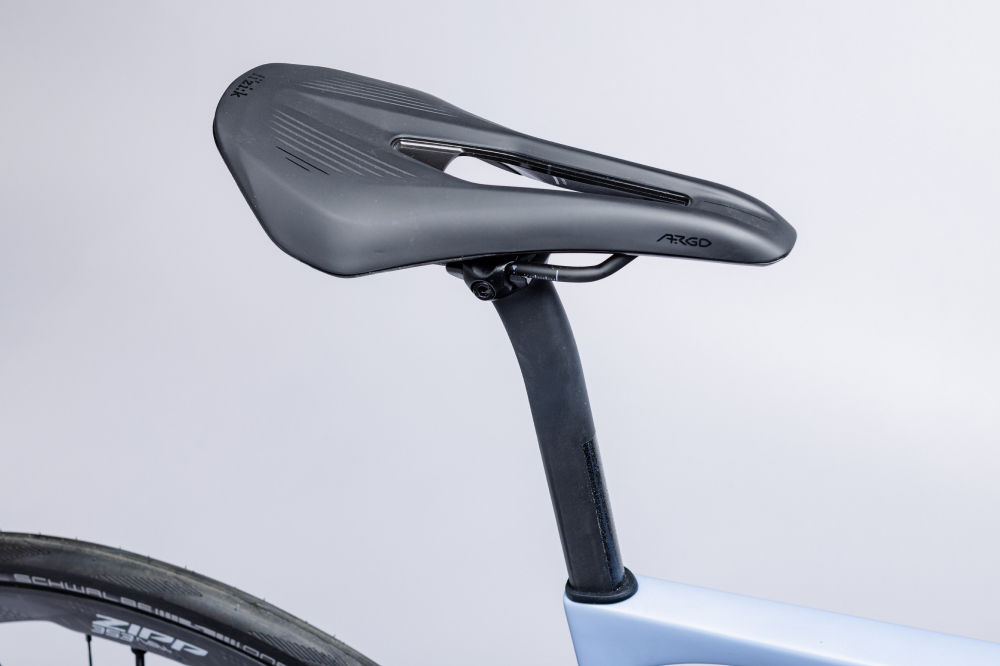

Fizik Vento Argo R5
SEATPOST
Ventum carbon post | 0° offset
HANDLEBAR / STEM
XS: Ventum CR5 one-piece cockpit | 90mm stem length | 38cm bar width
S: Ventum CR5 one-piece cockpit | 90mm stem length | 38cm bar width
M: Ventum CR5 one-piece cockpit | 90mm stem length | 40cm bar width
M/L: Ventum CR5 one-piece cockpit | 100mm stem length | 40cm bar width
L: Ventum CR5 one-piece cockpit | 100mm stem length | 42cm bar width
XL: Ventum CR5 one-piece cockpit | 110mm stem length | 42cm bar width
COMPUTER MOUNT
Integrated | Sold separately
HANDLEBAR TAPE
FSA Powertouch, black
BRAKES
SRAM RED eTap AXS HRD hydraulic disc brakes
BRAKE ROTORS
SRAM CenterLine XR | Center lock | 160mm F/R
WEIGHT
WEIGHT
TBD
BIKE WEIGHT LIMIT
250lbs max rider weight
STOCK FIT INFORMATION
XS
165mm crank length | 80mm stem length | 38mm bar width
S
170mm crank length | 90mm stem length | 38mm bar width
M
172.5mm crank length | 90mm stem length | 40mm bar width
M/L
172.5mm crank length | 100mm stem length | 40mm bar width
L
172.5mm crank length | 100mm stem length | 42mm bar width
XL
175mm crank length | 110mm stem length | 42mm bar width

Please note: Ventum reserves the right to make changes to the information listed on this page at any time. This includes spec, pricing, color, and any other product details. Due to supply chain issues, compatible parts may be substituted at any time without notice.

NS1 GEOMETRY

FRAME SIZE XS S M M/L L XL
(A) FRAME SIZE 493mm 510mm 536mm 552mm 585mm 604mm
(B) REACH 374mm 378mm 388mm 395mm 405mm 413mm
(C) HEAD TUBE LENGTH 96mm 110mm 134mm 151mm 185mm 205mm
(D) CHAINSTAY LENGTH 410mm 410mm 410mm 410mm 410mm 410mm
(E) FRONT CENTER 572mm 673mm 582mm 594mm 614mm 628mm
(F) WHEELBASE 972mm 973mm 982mm 994mm 1014mm 1028mm
(G) BOTTOM BRACKET DROP 69mm 69mm 69mm 69mm 69mm 69mm
(H) SEAT TUBE ANGLE 73.5° 73.5° 73° 73° 73° 73°
(I) HEAD TUBE ANGLE 71° 72° 73° 73° 73° 73°
(J) TOP TUBE LENGTH, Horizontal 521mm 530mm 552mm 564mm 584mm 598mm
(K) SEAT TUBE LENGTH 453mm 467mm 493mm 514mm 546mm 568mm
(L) STAND OVER HEIGHT 737mm 753mm 777mm 796mm 827mm 847mm
(M) TRAIL 70.9 64.5 58.1 58.1 58.1 58.1
(N) FORK LENGTH, FULL 368mm 368mm 368mm 368mm 368mm 368mm
(O) FORK OFFSET (Not Shown) 45 45 45 45 45 45

NS1 SERVICE

CONTACT SUPPORT

Related Products
Sage Mod Gravel Bottle
$13.00
Purveyors of Gravel Tees (Men's)
$28.00
Ventum x WYN Republic Men's Permium Jersey (Rose)
$139.00 $110.00
Ventum X Pedal Mafia Spray Jacket
$129.99


Home Reviews 1

"Ironman Sweden was my first race on my new bike from Ventum, a Shimano Dura Ace 12-speed. The aero comfort is easy to adjust to the perfect fit and with the fantastic disc brakes it is easy to keep a good rhythm through the corners. With the Ventum One, I achieved my fastest bike split at Ironman Sweden."

- Jesper Svensson

Home Reviews 2

“There is nothing I would rather use to sail the gravel seas of eastern Nebraska than my GS1 (except for maybe a tandem). Its smooth comfort allowed me to carry my speed and momentum over the tops of every one of the endless rollers on the Gravel Worlds course. I was able to open gaps through the loose corners all day long, thanks to the bike’s stability and nimble handling, and there’s just no arguing with a 22 mph average speed over 150 miles, with 11,000 feet of elevation gain, on a course that’s 98% gravel, on my way to 2nd place out of a very talented pro field."

- John Borstelmann

Home Reviews 3

"The GS1 is everything I want in a gravel bike. The combination of smooth cruising on pavement and steady rolling over rowdy terrain makes it the most dynamic bike. From champagne gravel to chunky single track, my GS1 has performed beautifully through it all. Let’s not forget that it has ample tire clearance and is aesthetically stunning!"

- Lindsey Stevenson

SUPPORT

We Stand Behind Our Products

Ventum stands behind the quality our bikes, engineering, and all of our products. Each item is meticulously desined in-house by our team of passionate riders. Our goal is to elevate your experience and to deliver products that can withstand all normal rugged wear and tear that comes with competing in a triathlon, running a crit series, or enjoying a long gravel road to nowhere.

If you are not satisfied with your order, contact our customer support team about our 30-day return policy or let us know how we can make Ventum better.

Sizing

&nbsp

Ordering, Shipping, Warranty, & Returns

&nbsp

Lead time varies depending on the build specs and component availability. Please reach out to support@ventumracing.com for more information.

&nbsp

For Standard shipping in the continental US, Ventum uses a custom, oversized bike box and the bike will arrive 98% assembled. You simply need to install the wheels and seatpost and you’ll be ready to ride. A torque wrench is required.

For bikes shipped outside of the continental US, the bike will arrive 85% assembled. Upon delivery, you will need to install the wheels, seatpost, and the stem onto the steerer tube.

Financing & Trade-Ups

&nbsp

Submit your bike directly to The Pro’s Closet, and share their offer with support@ventumracing.com. The trade-up value will be deducted from your order total. We’ll need to email you a custom invoice, so don’t order online before speaking with Ventum Support. The trade-up bike will need to be shipped to The Pro’s Closet within 2 weeks–we supply the shipping label.

&nbsp

Yes, we offer financing through Klarna for most customers in the USA.

General Product Information

&nbsp

Ventum One Disc - 28mm max (700x28C)

NS1 - Tires measuring up to 35mm in width (700x35C)

GS1 - Tires measuring up to 48mm in width (700x48C) *The GS1 can run 650b wheels, with tires measuring up to 51 mm in width

&nbsp

NS1 and Ventum One Disc builds will be set up tubeless when upgraded to carbon wheelsets. Alloy wheels are setup with inner tubes and clincher tires.

All GS1 builds will be set up tubeless regardless of the wheelset.
