LIGHTWEIGHT
AND AERO
The Ventum NS1 shatters the notion that a road bike must be either lightweight or aerodynamic. Every element of the Ventum NS1 has been optimized for maximum aerodynamic performance. And yet, fully-configured, the NS1 weighs as little as 14.9 pounds. Any lighter and it would be illegal to race.
LIGHTWEIGHT AND AERO
RIDE WHERE
YOU WANT
The Ventum NS1 Shatters the notion that a road bike can be either lightweight or aerodynamic. Every element of the Ventum NS1 has been optimized for maximum aerodynamic performance. And yet, fully-configured the NS1 weighs as little as 14.9 pounds. Any lighter would be illegal to race.
RIDE WHERE YOU WANT
YOUR BIKE
YOUR SPECS
YOUR BIKE, YOUR SPECS
FAST STARTS WITH A GREAT FIT
Ventum bikes are available in six sizes to accommodate a wide range of riders and positions. Need even more adjustability? Want a custom cockpit? Ventum uses all standard-sized parts, so you can add your own after-market components.

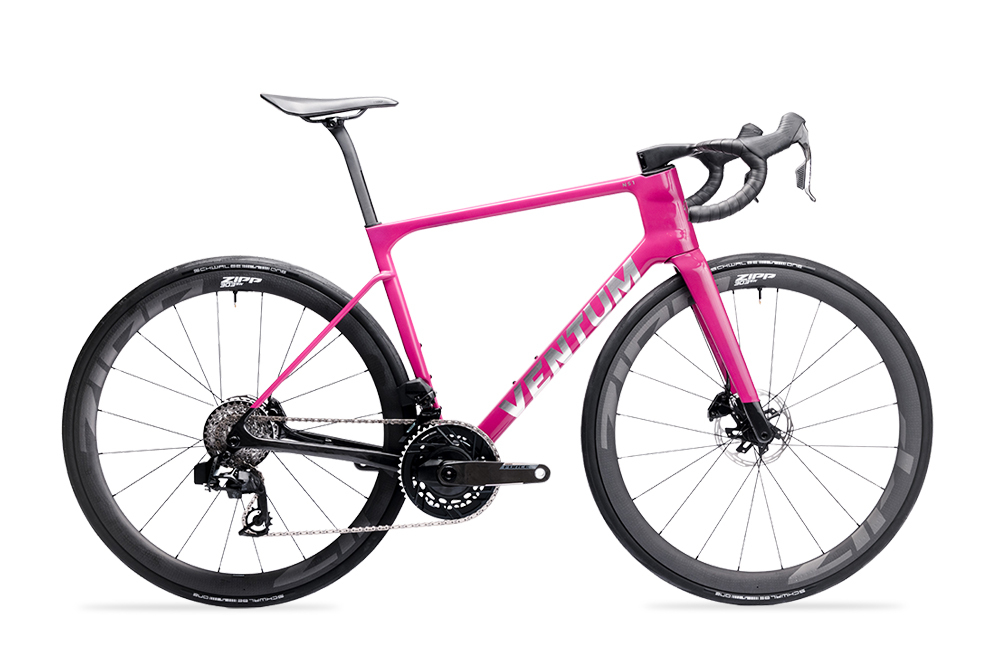

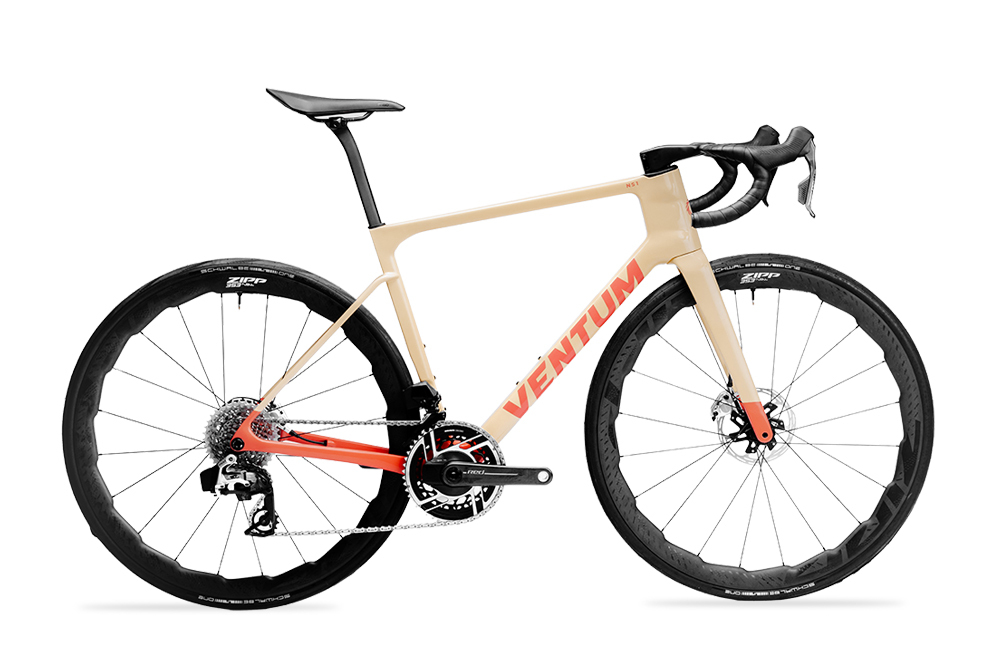

GS1 SPECS |
SRAM RIVAL AXS | SRAM FORCE AXS | SRAM RED AXS | SHIMANO 12-SPEED ULTEGRA Ui2 | SHIMANO 12-SPEED DURA-ACE Di2 | ||
---|---|---|---|---|---|---|---|
FRAMESET | |||||||
FRAME | Ventum NS1 Carbon Frame | ||||||
FORK | Ventum NS1 Carbon Fork | ||||||
COCKPIT | |||||||
HANDLE BARS | 2 Piece Alloy Bar/Stem | Ventum Carbon One-Piece Bar/Stem | |||||
SEAT POST | Ventum Seatpost, Material: Carbon, 400mm Length, 25mm offset | ||||||
DRIVE TRAIN | |||||||

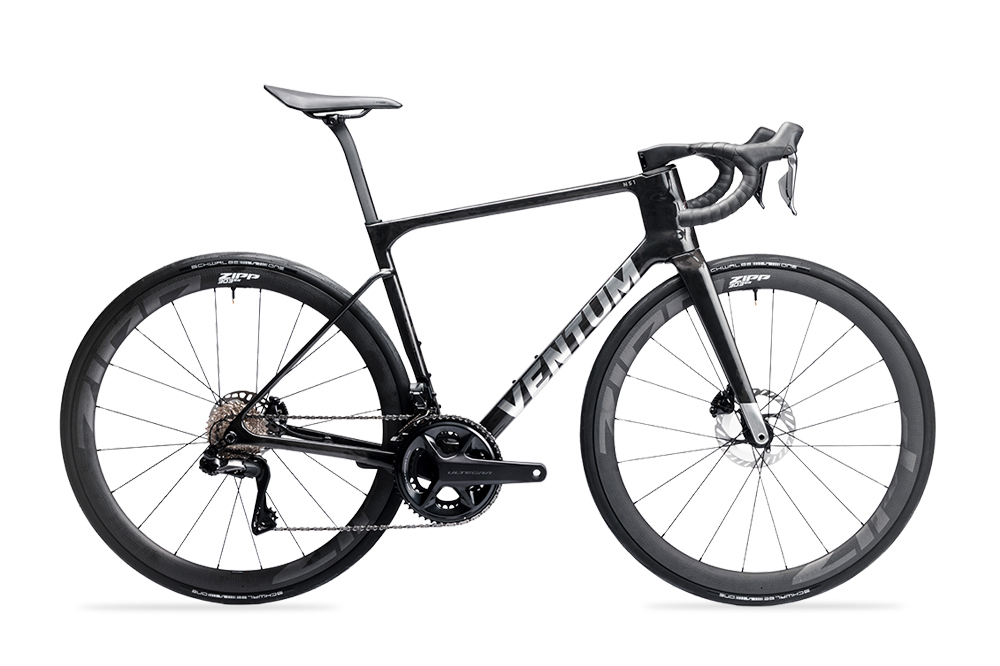

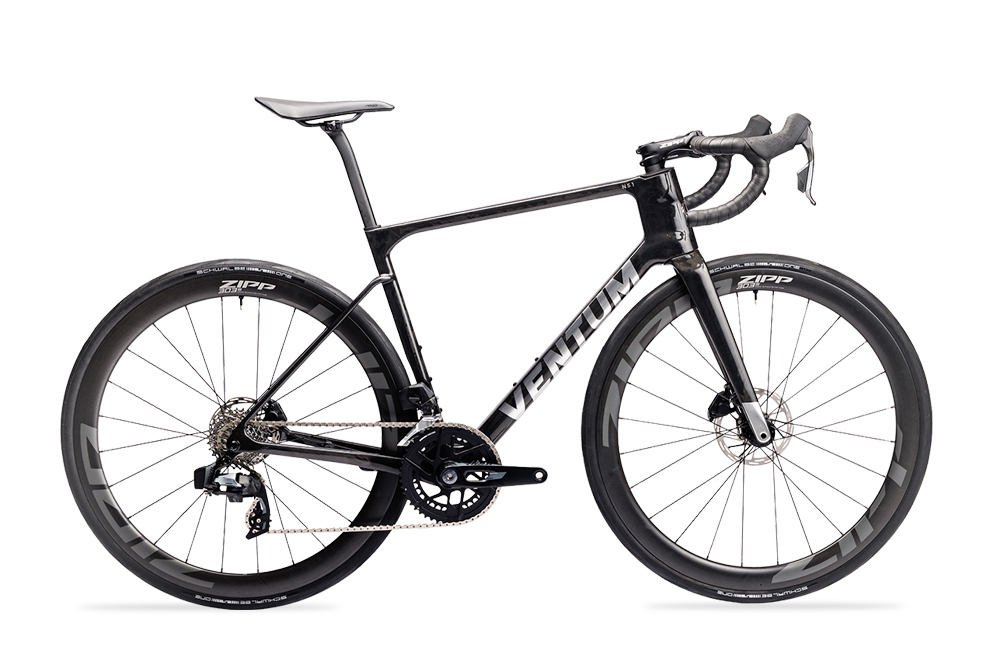

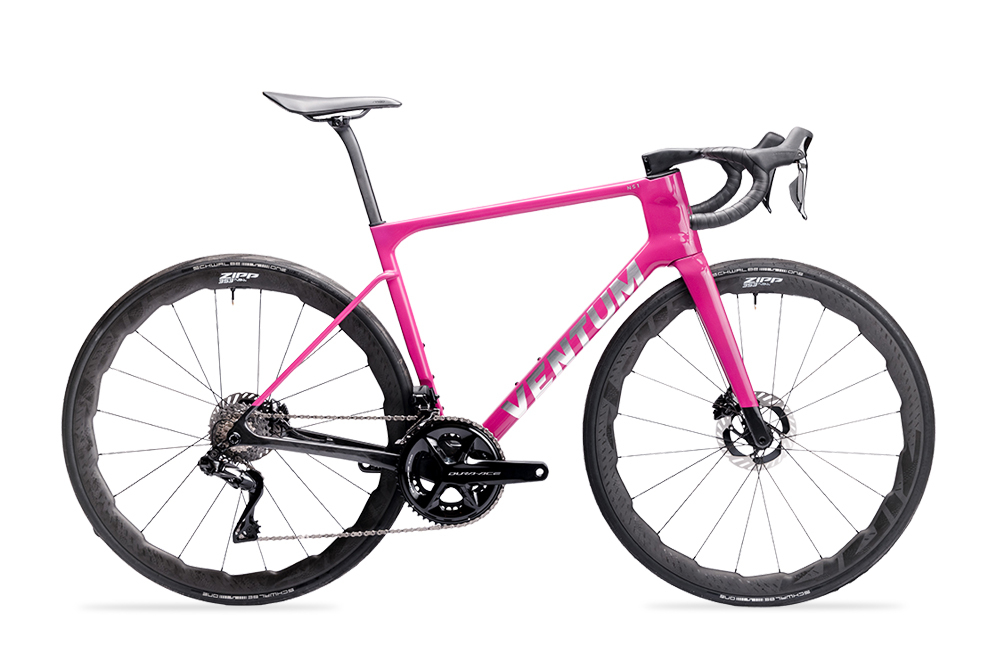

SHIFT LEVERS | SRAM Rival ED-RIV-D1 | SRAM Force ED-FRC-D1 | SRAM ED-RED-D1 | Shimano Ultegra ST-R8170 | Shimano Dura Ace ST-R9270 | ||
FRONT DERAILLEUR | SRAM Rival FD-RIV-E-D1 | SRAM Force FD-FRC-E-D1 | SRAM Red FD-RED-E-D1 | Shimano Ultegra FD-R8150 | Shimano Dura Ace FD-R9250 | ||
REAR DERAILLEUR | SRAM Rival RD-RIV-E-D1 | SRAM Force RD-FRC-E-D1 | SRAM Red RD-RED-E-D1 | Shimano Ultegra RD-R8150 | Shimano Dura Ace RD-R9250 | ||
CASSETTE | SRAM CS-XG-1250-D1 | SRAM CS-XG-1250-D1 | SRAM CS-XG-1270-D1 | Shimano Ultegra CS-R8100-12 | Shimano CS-R9200-12 | ||
WHEELS | |||||||
WHEELSET | Vision Team 30 Alloy, ENVE Foundation 45, ENVE SES 3.4, ENVE SES 6.7, Zipp 303 S, Zipp 303 Firecrest, Zipp 404 Firecrest | ||||||
SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE |
VENTUM NOW
PAY LATER
VENTUM NOW
PAY LATER
SUBSCRIBE TO OUR NEWSLETTER TO STAY INFORMED AND UP TO DATE ON ALL VENTUM PROMOTIONS
Frame Size | XS | S | M | M/L | L | XL | (A) Crank Length | 165mm, 170mm, 172.5mm , 175mm |
---|---|---|---|---|---|---|
(B) Stem Length | 90mm, 100mm, 110mm, 120mm | |||||
(C) Seatpost Length | 300mm | |||||
(D) Handlebar Width | 400mm, 420mm, 440mm | |||||
(E) Reach | 365mm | 378mm | 388mm | 395mm | 405mm | 413mm |
(F) Top Tube Length, Horizontal | 513mm | 529mm | 552mm | 564mm | 583mm | 598mm |
(G) Stack | 490mm | 509.5mm | 536mm | 552mm | 585mm | 604mm |
(H) Wheelbase | 972mm | 975mm | 984mm | 996mm | 1014mm | 1030mm |
(I) Chainstay Length | 410mm | |||||
(J) Front Center | 568mm | 575mm | 584mm | 596mm | 614mm | 630mm |
(K) BB Drop | 69mm | |||||
(L) BB Height | 266mm | |||||
(M) Seat Tube Angle | 73.5° | 73° | ||||
(N) Head Tube Angle | 71° | 72° | 73° | |||
(O) Seat Tube Length | 447mm | 467mm | 493mm | 514mm | 546mm | 568mm |
(P) Head Tube Length | 82mm | 110mm | 134mm | 151mm | 185mm | 205mm |
(Q) Bike Standover Height | 700mm | 728mm | 750mm | 776mm | 810mm | 834mm |
(R) Fork Rake/Offset | 47mm | |||||
(S) Fork Length, Full | 368mm | |||||
(T) Trail | 57.4mm | 51.6mm | 45.9mm | |||
Seat Post Off-Set | 0 or 25mm |
