ONE DISC RED AXS

No reviews yet Write a Review

SKU:
UPC:

The Ventum One Disc is a purpose-built triathlon bike engineered for the demands of long-course racing. With a wind-cheating frame optimized for crosswinds and an integrated hydration system that keeps you aero and fueled, it’s everything you need — and nothing you don’t — to go fast when it matters most.

This top-end model of the Ventum One Disc is equipped with the SRAM Red AXS electronic drivetrain and ZIPP 808 Firecrest wheels.

$9,690.00

Image caption goes here

Finance with Klarna

Pay over time with monthly financing*

*Monthly financing through Klarna issued by WebBank.

Learn More | About Klarna

Ride-Ready Shipping

New bike day, shipped direct to your door. Each bike is pre-assembled and tuned by a professional mechanic before being packed into our custom ride-ready box (lower 48 US States only). Assembly is easy — just attach the wheels and insert the seatpost.

30-Day Returns

Change your mind? Return your bike within 30-days of purchase.

The Ventum Return Policy

Limited Lifetime Warranty

We stand behind our bikes. Ventum offers a limited lifetime warranty on all of our frames, forks, and seat posts to the original owner which covers against defects in materials and workmanship.

Learn More

Hurry up! only left

Current Stock:

Quantity:

Adding to cart… The item has been added

Copy link:

ONE DISC RED AXS

$9,690.00

1. For Orders Shipped and Received

Returns Within 30 Days:

You may return your item for a full refund, including the original shipping costs, within 30 days of receipt of your order. To be eligible for a return, your item must be unused and in the same condition that you received it. Any item not in its original condition, that is damaged or missing parts for reasons not due to our error will be issued a partial refund, or denied return and re-shipped to you at Ventum’s discretion.

You will be responsible for paying for your own shipping costs for returning your item. We strongly suggest that you keep the original packaging, use a trackable shipping service, and purchase shipping insurance. You are responsible for any loss or damage that occurs during the return shipping process. You may purchase a return shipping label from Ventum; email support@ventumracing.com for more information.

Once your return is received and inspected, we will send you an email to notify you that we have received your returned item. We will also notify you of the approval or rejection of your refund. If you are approved, then your refund will be processed, and a credit will automatically be applied to your credit card or original method of payment. To return your product, please send an email to support@ventumracing.com and provide your order number.

Refunds: Refunds can take up to 30-days to process, once the returned item has been received by Ventum.

All demo bike sales are final sales.

2. Pre-orders/Orders Not Yet Processed:

You may cancel your order for any reason prior to processing and receive a full refund. If you wish to cancel your order, please send an email to support@ventumracing.com and provide your order number.

Refunds: Refunds for high-value orders can take up to 30-days to process after a cancellation request.

3. International Shipping:

While Ventum offers global shipping for your purchases, it is the recipient’s responsibility to ensure that the destination country allows for the lawful importation of Ventum products. Laws and regulations of the destination country dictate what import taxes, fees, and customs duties are applicable to the purchases. All import taxes, fees, and customs duties are the responsibility of the recipient as the importer of record. Ventum cannot foresee when purchases will be subject to additional customs clearance requirements, and cannot affect how they will be applied. Additional customs clearance requirements may extend the delivery date past the original estimate. Please contact the customs officials of the destination country for more information on their policies.

You will be responsible for paying for your own shipping costs for returning your item. We strongly suggest that you consider using a trackable shipping service and purchasing shipping insurance, because you are responsible for any loss or damage that occurs during the return shipping process. You may purchase a return shipping label from Ventum. Contact support@ventumracing.com for more information.

Refunds: Refunds can take up to 30-days to process, once the returned item has been received by Ventum.

4. Local pickup at Ventum HQ in Utah

We do allow for free in-person pickups at Ventum headquarters in Heber City, UT. Please email support@ventumracing.com before placing an order online to arrange and schedule a local pickup. Local pickup is limited to normal business hours, and not available during weekends or holidays.

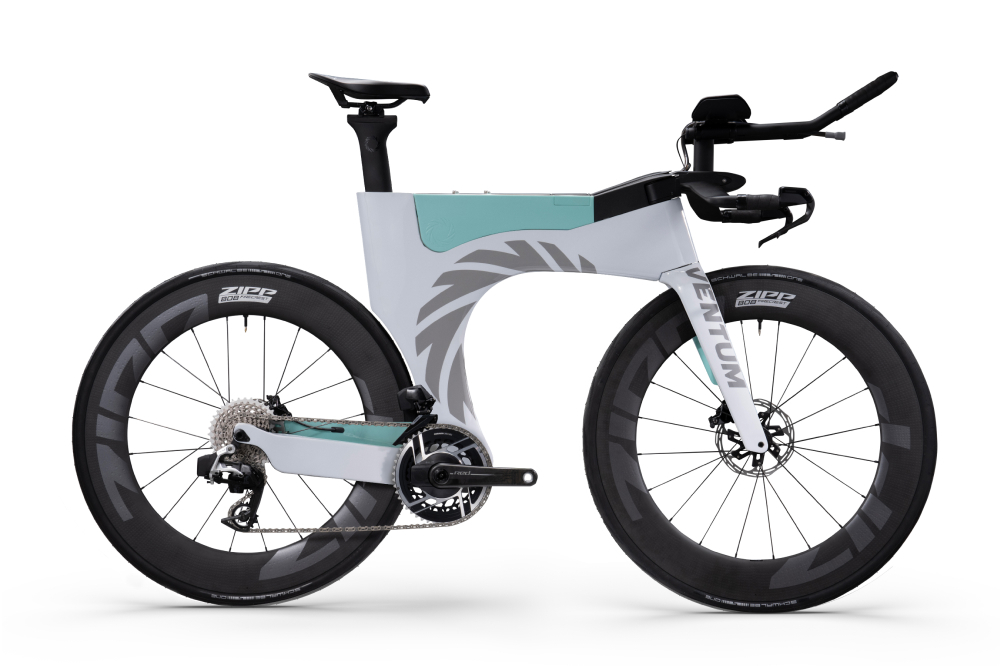

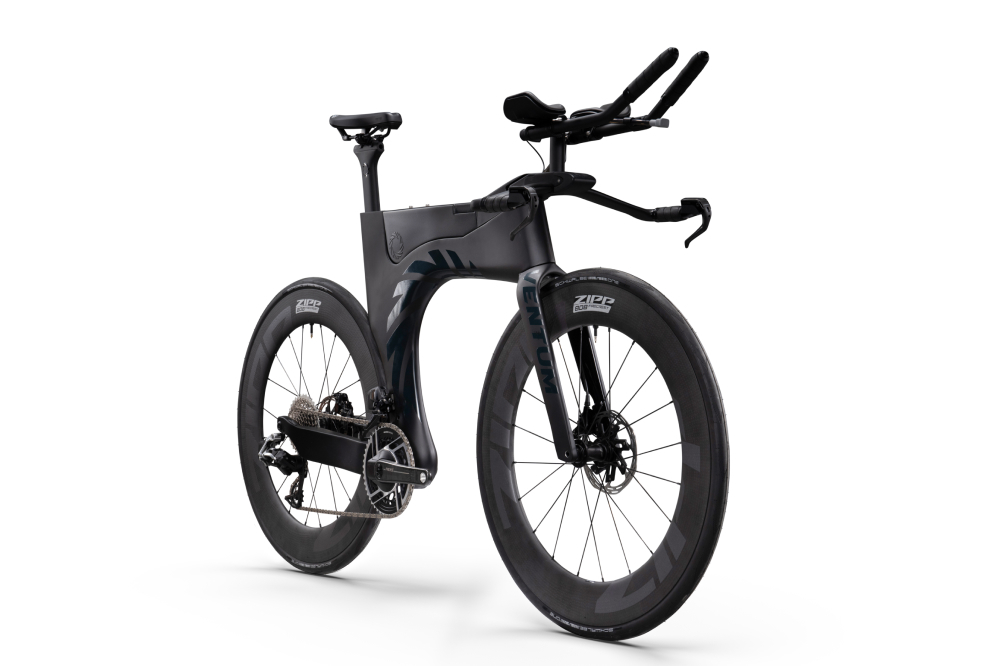

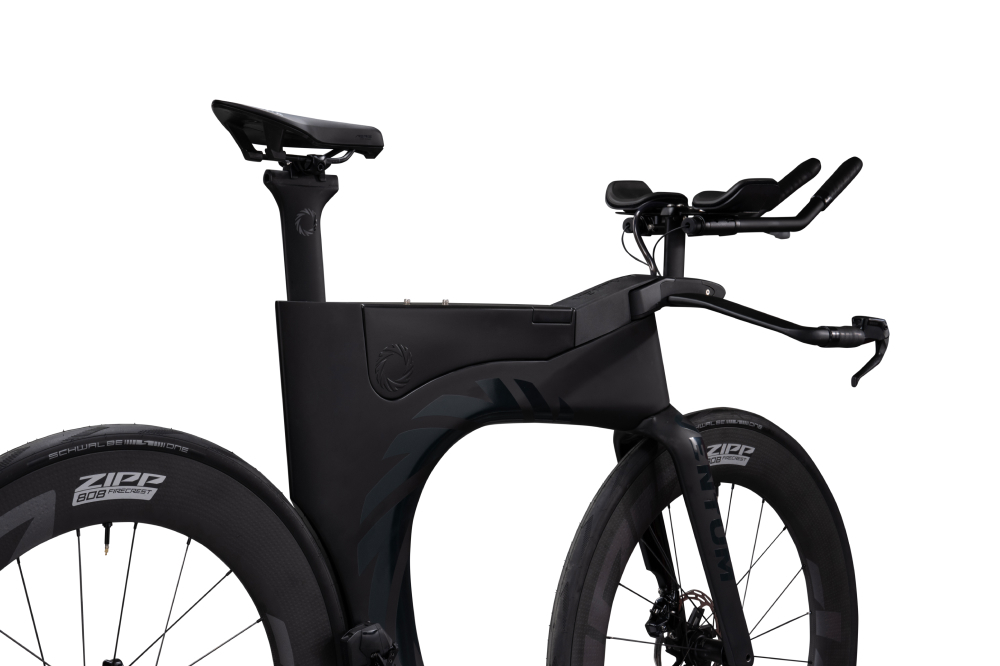

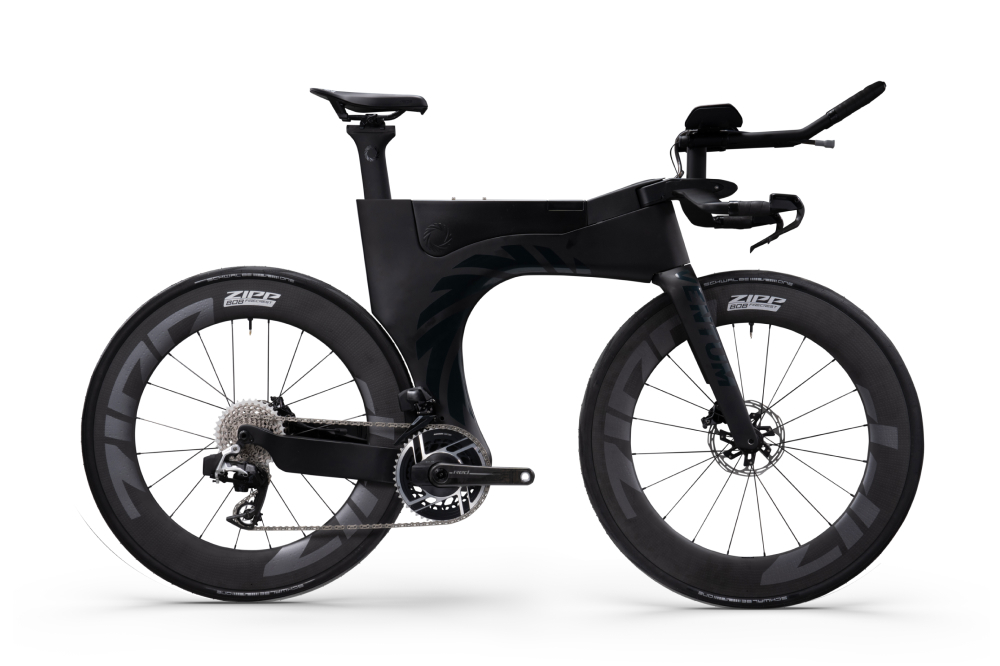

ABOUT THE VENTUM ONE DISC RED AXS

Every detail of the Ventum One Disc is designed for aerodynamic efficiency, stability in crosswinds, and rider-focused functionality — because on race day, nothing matters more than staying fast and staying in control.

It starts with the frame: a radically aerodynamic design shaped by real-world wind conditions, not just wind tunnels. Deep airfoil profiles and a narrow frontal area help the Ventum One hold speed across a range of yaw angles — especially in crosswinds, where lesser bikes get pushed around.

The integrated water reservoir keeps hydration tucked inside the frame, helping you stay aero and fueled without compromise. Disc brakes offer confident control in all conditions, and a wide fit window ensures the One can be dialed to your exact position — so you’re not just aero, you’re comfortable staying there.

This is a bike for athletes who obsess over every watt. When race day demands your absolute best, the Ventum One delivers.

WHAT YOU GET

• SRAM Red AXS 12-speed electronic drivetrain
• ZIPP 808 Firecrest carbon race wheels
•Integrated 1.4L hydration resevoir
• A crosswind-killing full-carbon frame
• Tire clearance to 700x30c

VENTUM CUSTOMER SUPPORT + RIDE READY SHIPPING

Each Ventum bike begins life at our facility in Heber City, Utah, at the doorstep of some of the best riding this side of… anywhere.

No matter the build, any bike we send out into the world is first built, checked, and thoroughly tuned by a professional mechanic. With a bill of good health, it’s then repackaged into a specially-made ride-ready box designed to transport the bike to the rider with as little disassembly as possible. In the end, all you need to do is attach the front wheel, insert the seat post, and dial in your fit.

We’re here to help along the way. From picking your bike to support down the road, the Ventum customer support team is here for anything you need.

VENTUM ONE DISC RED AXS FEATURES

SPEED + COMFORT

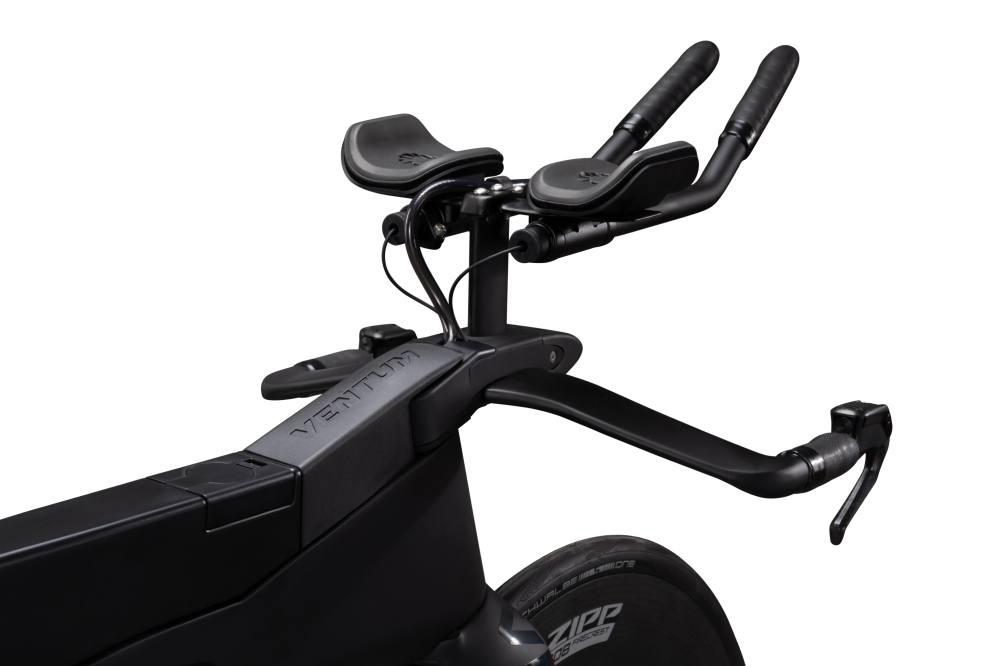

The Ventum One's redesigned front end is focused on adjustability and speed. The telescoping monoriser and tilt function combined with the increased pad stack and reach allows for your optimal fit and aero position.

INTEGRATED HYDRATION

A 1.4L integrated reservoir keeps hydration tucked inside the frame, helping you stay aero and fueled without compromise.

Removable, easy to clean, and out of the way, it’s the perfect fueling solution for long distance racing.

VENTUM ONE DISC - SRAM RED AXS - SPECIFICATIONS

FRAMESET

FRAME

Ventum One Disc Triathlon frame | Full carbon fiber construction | Internal cable routing | Internal Hydration Resevoir | Flat mount disc brake

FORK

Ventum One Disc Triathlon fork | Tapered carbon steerer | Internal brake routing | Flat mount disc brake

WHEELS

FRONT WHEEL

ZIPP 808 Firecrest carbon fiber front wheel | Tubeless, disc brake | 80mm rim depth | Hookless | 23mm ID

REAR WHEEL

TIRES

Schwalbe One | Performance RaceGuard | 700x28c

MAX TIRE SIZE

700x30c

DRIVETRAIN

SHIFTERS (EXTENSIONS)

SRAM eTap AXS Wireless Blips

SHIFTERS (BASE BAR)

SRAM eTap Blips

FRONT DERAILLEUR

SRAM Red AXS | 2x12 speed | Electronic shifting

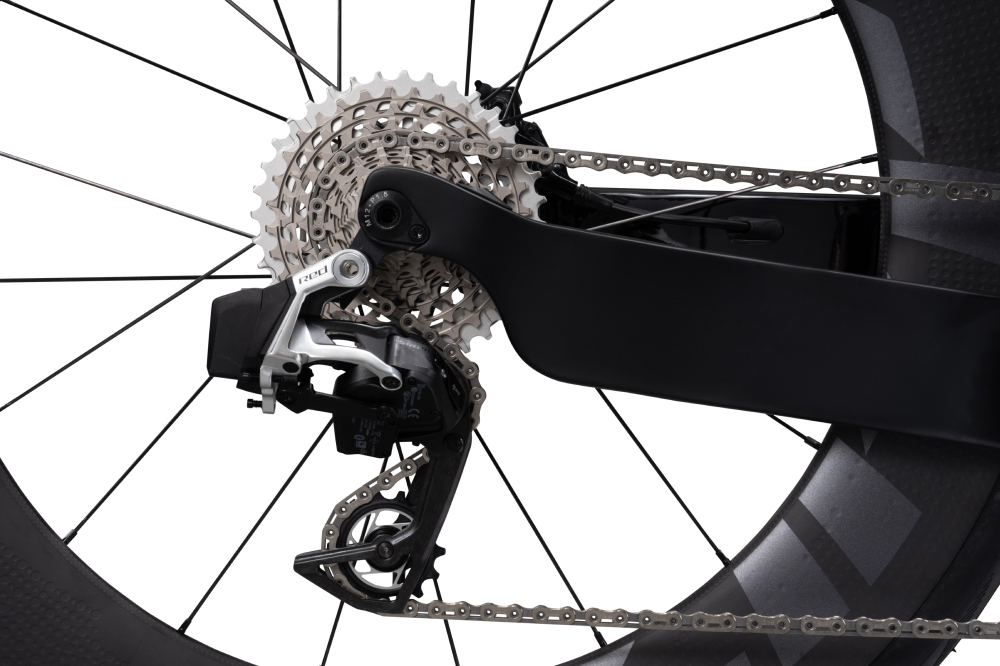

REAR DERAILLEUR

SRAM Red AXS | 2x12 speed | Electronic shifting

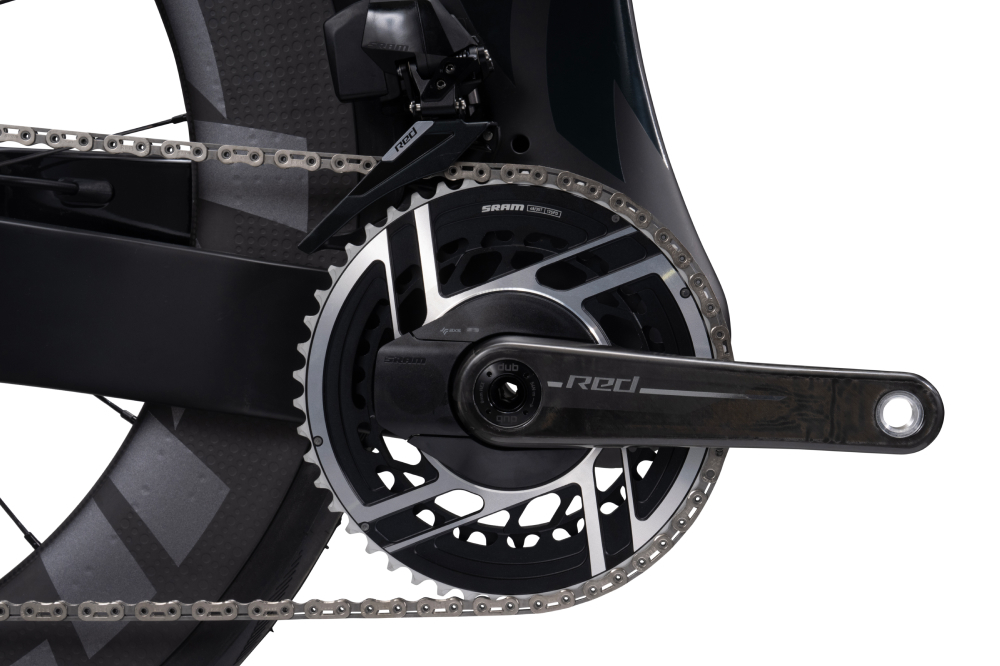

CRANK

S: SRAM Red Crankset | 48/35T chainrings | 165mm crank length

M: SRAM Red Crankset | 48/35T chainrings | 165mm crank length

L: SRAM Red Crankset | 48/35T chainrings | 170mm crank length

XL: SRAM Red Crankset | 48/35T chainrings | 170mm crank length

BOTTOM BRACKET

SRAM DUB PF30

CASSETTE

SRAM Red AXS | XG 1290 E1 | 10-36T

CHAIN

SRAM Red E1

COMPONENTS

SADDLE

Fizik Aeris SD R5 135mm

SEATPOST

Ventum carbon post | 0° offset

COCKPIT

Ventum One Disc Aerobar System

HYDRATION

Ventum One Disc Hydration System — 1.4L

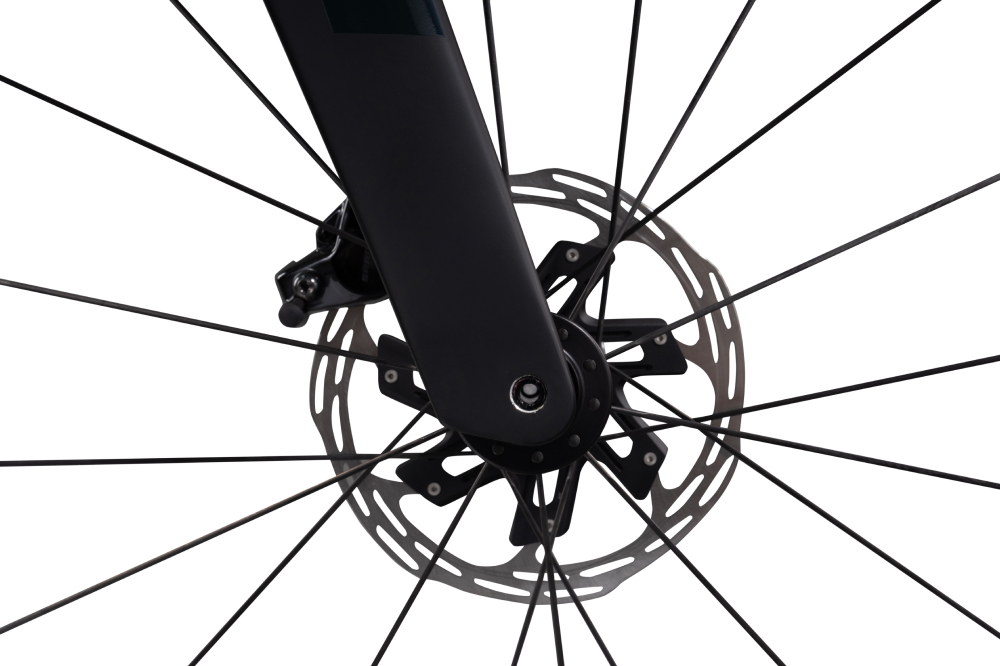

BRAKES

SRAM S900

BRAKE ROTORS

SRAM Centerlock Paceline | 160mm Front /140mm Rear

STOCK FIT INFORMATION

165 mm crank length

170 mm crank length

Please note: Ventum reserves the right to make changes to the information listed on this page at any time. This includes spec, pricing, color, and any other product details. Due to supply chain issues, compatible parts may be substituted at any time without notice.

VENTUM ONE DISC SIZING GUIDE

VENTUM ONE DISC RED AXS GEOMETRY

FRAME SIZE	XS	S	M	M/L	L	XL
(A) STACK	499	505	510	528	545	564
(B) REACH	380	397	394	409	422	437
(C) HEAD TUBE LENGTH	82	90	95	114	132	152
(D) CHAINSTAY LENGTH	399	399	399	399	399	399
(E) FRONT CENTER	565	582	584	603	622	643
(F) WHEELBASE	951	971	970	990	1009	1030
(G) BOTTOM BRACKET DROP	76	75	75	75	75	75
(H) SEAT TUBE ANGLE	82°	82°	82°	82°	82°	82°
(I) HEAD TUBE ANGLE	72.6°	72.5°	72.5°	72.5°	72.5°	72.5°
(J) TOP TUBE LENGTH, Horizontal	451	467	470	485	500	518

VENTUM ONE DISC RED AXS SERVICE

SERVICE DOCUMENTS

VENTUM ONE DISC - Product Manual

SRAM Resources

ZIPP Resources

CONTACT SUPPORT

"Ironman Sweden was my first race on my new bike from Ventum, a Shimano Dura Ace 12-speed. The aero comfort is easy to adjust to the perfect fit and with the fantastic disc brakes it is easy to keep a good rhythm through the corners. With the Ventum One, I achieved my fastest bike split at Ironman Sweden."

- Jesper Svensson

“There is nothing I would rather use to sail the gravel seas of eastern Nebraska than my GS1 (except for maybe a tandem). Its smooth comfort allowed me to carry my speed and momentum over the tops of every one of the endless rollers on the Gravel Worlds course. I was able to open gaps through the loose corners all day long, thanks to the bike’s stability and nimble handling, and there’s just no arguing with a 22 mph average speed over 150 miles, with 11,000 feet of elevation gain, on a course that’s 98% gravel, on my way to 2nd place out of a very talented pro field."

- John Borstelmann

"The GS1 is everything I want in a gravel bike. The combination of smooth cruising on pavement and steady rolling over rowdy terrain makes it the most dynamic bike. From champagne gravel to chunky single track, my GS1 has performed beautifully through it all. Let’s not forget that it has ample tire clearance and is aesthetically stunning!"

- Lindsey Stevenson

SUPPORT

We Stand Behind Our Products

Ventum stands behind the quality our bikes, engineering, and all of our products. Each item is meticulously desined in-house by our team of passionate riders. Our goal is to elevate your experience and to deliver products that can withstand all normal rugged wear and tear that comes with competing in a triathlon, running a crit series, or enjoying a long gravel road to nowhere.

If you are not satisfied with your order, contact our customer support team about our 30-day return policy or let us know how we can make Ventum better.

Sizing

&nbsp

Ordering, Shipping, Warranty, & Returns

&nbsp

Lead time varies depending on the build specs and component availability. Please reach out to support@ventumracing.com for more information.

&nbsp

For Standard shipping in the continental US, Ventum uses a custom, oversized bike box and the bike will arrive 98% assembled. You simply need to install the wheels and seatpost and you’ll be ready to ride. A torque wrench is required.

For bikes shipped outside of the continental US, the bike will arrive 85% assembled. Upon delivery, you will need to install the wheels, seatpost, and the stem onto the steerer tube.

Financing & Trade-Ups

&nbsp

Submit your bike directly to The Pro’s Closet, and share their offer with support@ventumracing.com. The trade-up value will be deducted from your order total. We’ll need to email you a custom invoice, so don’t order online before speaking with Ventum Support. The trade-up bike will need to be shipped to The Pro’s Closet within 2 weeks–we supply the shipping label.

&nbsp

Yes, we offer financing through Klarna for most customers in the USA.

General Product Information

&nbsp

2025 GS1 - Tire clearance to700x56c in the front and 700x50c in the rear.

NS1 - Tires measuring up to 35mm in width (700x35C)

Legacy GS1 - Tires measuring up to 48mm in width (700x48C)*

Ventum One Disc - 28mm max (700x28C)

&nbsp

NS1 and Ventum One Disc builds will be set up tubeless when upgraded to carbon wheelsets. Alloy wheels are setup with inner tubes and clincher tires.

All GS1 builds will be set up tubeless regardless of the wheelset.
