NS1 ROAD BIKE FRAMESET

No reviews yet Write a Review

SKU:
UPC:

The all-new Ventum NS1 road bike is built for those driven to go further, faster.

More than 200g lighter than its predecessor, stiffer, and more aerodynamic, the third iteration of the NS1 is an all-rounder that’s equally at home in big mountains as it is on windswept tarmac. Race it. Train with it. Get lost with it. The new NS1 is not meant to be an N+1 killer, but it will be the bike you reach for most.

Weight, aerodynamics, fit, and handling — all in perfect balance. That’s Ventum’s Formula for Speed.

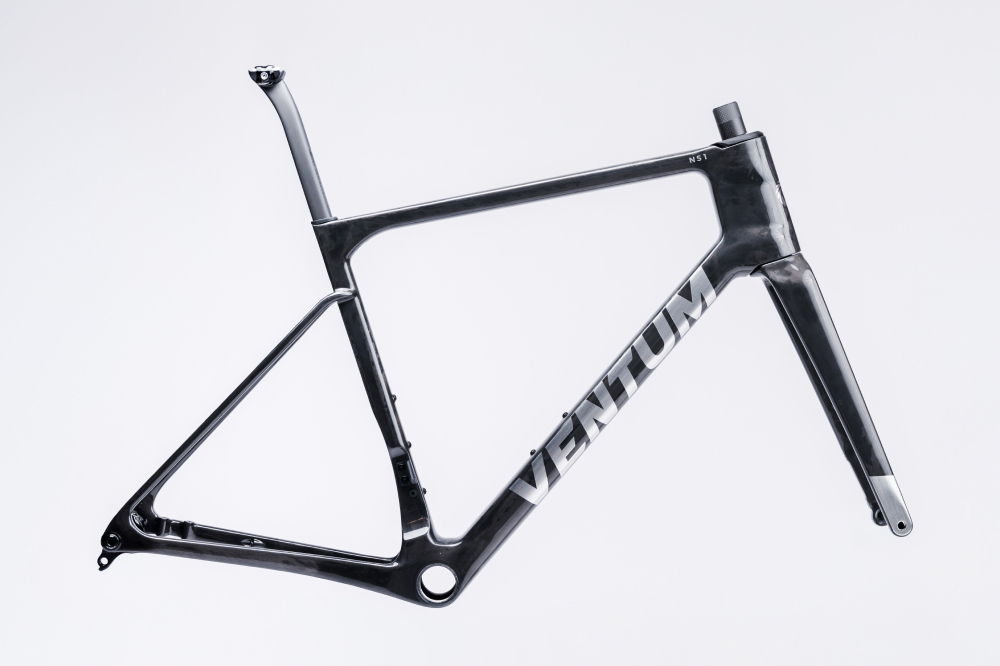

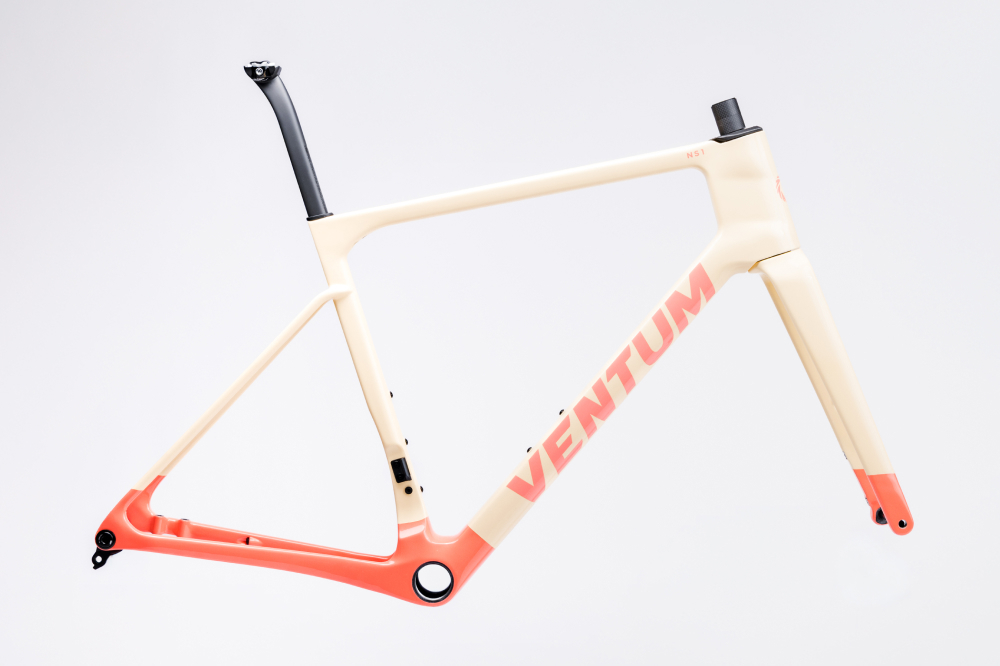

The Ventum NS1 Road Bike Frameset is a blank slate: build it exactly as you want it. Included with the all-carbon fiber frame is the headset assembly, axles, seat post, a Universal Derailleur Hanger, and all the small parts you need.

Handlebar and stem sold separately.

$3,599.00

Finance with Klarna

Pay over time with monthly financing*

*Monthly financing through Klarna issued by WebBank.

Learn More | About Klarna

Ride-Ready Shipping

New bike day, shipped direct to your door. Each bike is pre-assembled and tuned by a professional mechanic before being packed into our custom ride-ready box (lower 48 US States only). Assembly is easy — just attach the wheels and insert the seatpost.

30-Day Returns

Change your mind? Return your bike within 30-days of purchase.

The Ventum Return Policy

Limited Lifetime Warranty

We stand behind our bikes. Ventum offers a limited lifetime warranty on all of our frames, forks, and seat posts to the original owner which covers against defects in materials and workmanship.

Learn More

Image caption goes here

Image caption goes here

Image caption goes here

Image caption goes here

Hurry up! only left

Current Stock:

Quantity:

Adding to cart… The item has been added

Copy link:

NS1 ROAD BIKE FRAMESET

$3,599.00

1. For Orders Shipped and Received

Returns Within 30 Days:

You may return your item for a full refund, including the original shipping costs, within 30 days of receipt of your order. To be eligible for a return, your item must be unused and in the same condition that you received it. Any item not in its original condition, that is damaged or missing parts for reasons not due to our error will be issued a partial refund, or denied return and re-shipped to you at Ventum’s discretion.

You will be responsible for paying for your own shipping costs for returning your item. We strongly suggest that you keep the original packaging, use a trackable shipping service, and purchase shipping insurance. You are responsible for any loss or damage that occurs during the return shipping process. You may purchase a return shipping label from Ventum; email support@ventumracing.com for more information.

Once your return is received and inspected, we will send you an email to notify you that we have received your returned item. We will also notify you of the approval or rejection of your refund. If you are approved, then your refund will be processed, and a credit will automatically be applied to your credit card or original method of payment. To return your product, please send an email to support@ventumracing.com and provide your order number.

Refunds: Refunds can take up to 30-days to process, once the returned item has been received by Ventum.

All demo bike sales are final sales.

2. Pre-orders/Orders Not Yet Processed:

You may cancel your order for any reason prior to processing and receive a full refund. If you wish to cancel your order, please send an email to support@ventumracing.com and provide your order number.

Refunds: Refunds for high-value orders can take up to 30-days to process after a cancellation request.

3. International Shipping:

While Ventum offers global shipping for your purchases, it is the recipient’s responsibility to ensure that the destination country allows for the lawful importation of Ventum products. Laws and regulations of the destination country dictate what import taxes, fees, and customs duties are applicable to the purchases. All import taxes, fees, and customs duties are the responsibility of the recipient as the importer of record. Ventum cannot foresee when purchases will be subject to additional customs clearance requirements, and cannot affect how they will be applied. Additional customs clearance requirements may extend the delivery date past the original estimate. Please contact the customs officials of the destination country for more information on their policies.

You will be responsible for paying for your own shipping costs for returning your item. We strongly suggest that you consider using a trackable shipping service and purchasing shipping insurance, because you are responsible for any loss or damage that occurs during the return shipping process. You may purchase a return shipping label from Ventum. Contact support@ventumracing.com for more information.

Refunds: Refunds can take up to 30-days to process, once the returned item has been received by Ventum.

4. Local pickup at Ventum HQ in Utah

We do allow for free in-person pickups at Ventum headquarters in Heber City, UT. Please email support@ventumracing.com before placing an order online to arrange and schedule a local pickup. Local pickup is limited to normal business hours, and not available during weekends or holidays.

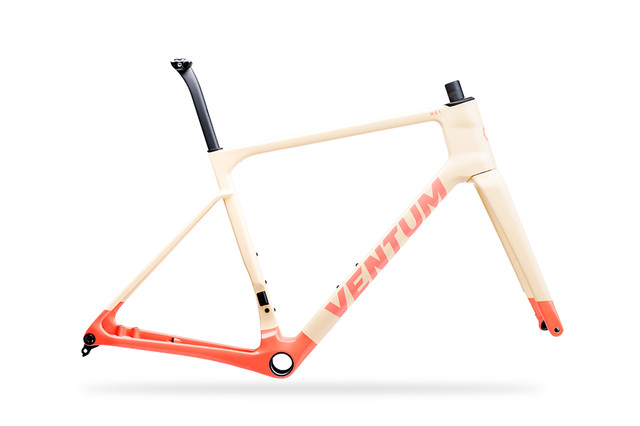

ABOUT THE VENTUM NS1 ROAD BIKE FRAMESET

The third generation Ventum NS1 is lighter, stiffer, more aerodynamic, and designed to fit better. Engineered to be confidence-inspiring at speed yet aggressive in corners, it’s the bike you’ll reach for on race day or big days alike.

We used higher modulus carbon and a new frame layup to shave over 200g from the frame, and completely redesigned the front end of the bike to be sharper in the wind. The leading edge of the bike has been extended forward of the steerer, creating space for a cleaner, more efficient airfoil where the wind hits first. We’ve also added a pronounced hourglass head tube that narrows the frame’s waist and reduces frontal area.

The result: A sharper, more efficient leading edge.

The geometry is aggressive and race-inspired, but we’ve added reach and stack — especially on the larger sizes — to make the fit friendlier to a broader range of riders. Not only does this make the bike more comfortable, but it helps riders settle into a cleaner aero position and hold it longer.

WHAT YOU GET

• Ventum NS1 carbon fiber frameset
• UDH compatibility
• T47 bottom bracket compatibility
• A full carbon fiber frame with intuitive internal cable routing
• Tire clearance to 700x35c

VENTUM CUSTOMER SUPPORT + RIDE READY SHIPPING

Each Ventum bike begins life at our facility in Heber City, Utah, at the doorstep of some of the best riding this side of… anywhere.

No matter the build, any bike we send out into the world is first built, checked, and thoroughly tuned by a professional mechanic. With a bill of good health, it’s then repackaged into a specially-made ride-ready box designed to transport the bike to the rider with as little disassembly as possible. In the end, all you need to do is attach the front wheel, insert the seat post, and dial in your fit.

We’re here to help along the way. From picking your bike to support down the road, the Ventum customer support team is here for anything you need.

VENTUM NS1 ROAD BIKE FRAMESET FEATURES

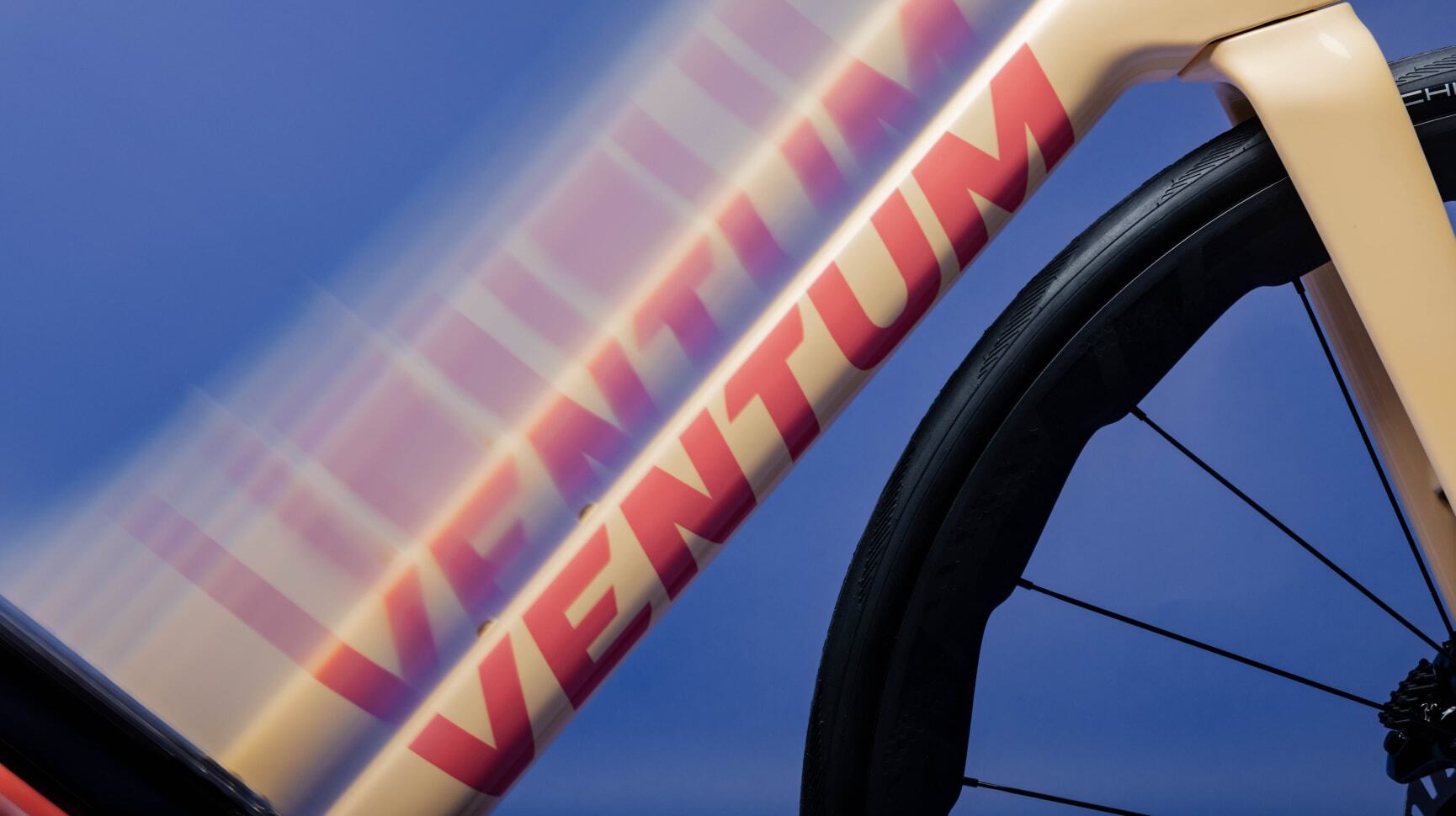

A FEATHERWEIGHT FRAME

The third-generation NS1 frame is more than 200g lighter than its predecessor, weighing in at just 852g in a M/L.

That reduction comes from a new carbon layup, use of a higher-modulous carbon fiber, and by shaving mass from the front end and seat stays.

Less weight doesn’t come at the expense of ride quality. In testing, the new chassis is 7.7% stiffer in the head tube and 11.9% stiffer in the bottom bracket. It’s livelier on the climbs, more responsive through corners, and stiffer where it matters.

MORE AERO

An all new front end, inspired by the Tempus TT bike, cuts through the wind.

The leading edge of the NS1 has been extended forward of the steerer, creating space for a cleaner, more efficient airfoil. We’ve also narrowed the waist of the frame by using an hourglass head tube, reducing the frontal area.

The fork has been redesigned to match. Deeper airfoils on the fork legs extend down from the new head tube, improving airflow management while also increasing stiffness.

IMPROVED FIT, SAME SNAPPY HANDLING

Speed is easier to find when the position is right. The NS1’s geometry has been updated to help riders hold an aerodynamic position more comfortably for longer.

The stack and reach figures have been increased slightly over its predecessor — particularly on larger sizes. But aside from that change, we’ve protected the NS1’s racy handling.

Nimble in corners. Stable at speed. Lively everywhere.

VENTUM NS1 ROAD BIKE FRAMESET SPECIFICATION

FRAMESET

FRAME

FORK

Ventum NS1 fork | Tapered carbon steerer | Internal brake routing | Flat mount disc brake | Carbon dropouts

WHEELS

MAX TIRE SIZE

700x35c

COMPONENTS

SEATPOST

Ventum carbon post | 10mm offset

COMPUTER MOUNT

Not included

Please note: Ventum reserves the right to make changes to the information listed on this page at any time. This includes spec, pricing, color, and any other product details. Due to supply chain issues, compatible parts may be substituted at any time without notice.

VENTUM NS1 ROAD BIKE FRAMESET SIZING GUIDE

VENTUM NS1 ROAD BIKE FRAMESET GEOMETRY

FRAME SIZE	XS	S	M	M/L	L	XL
(A) STACK	493	515	541	565	590	615
(B) REACH	370	378	388	397	405	413
(C) HEAD TUBE LENGTH	90	110	133	158	185	211
(D) CHAINSTAY LENGTH	410	410	410	410	410	410
(E) FRONT CENTER	568	574	584	600	615	631
(F) WHEELBASE	968	974	984	1000	1015	1031
(G) BOTTOM BRACKET DROP	69	69	69	69	69	69
(H) SEAT TUBE ANGLE	73.5°	73.5°	73°	73°	73°	73°
(I) HEAD TUBE ANGLE	71°	72°	73°	73°	73°	73°
(J) TOP TUBE LENGTH	516	531	553	570	585	601
(K) SEAT TUBE LENGTH (PHYSICAL)	439	448	473	490	527	543
(L) STAND OVER HEIGHT	730	745	770	788	820	840
(M) TRAIL	70.9	64.5	58.1	58.1	58.1	58.1
(N) FORK LENGTH, FULL	373	373	373	373	373	373
(O) FORK OFFSET	45	45	45	45	45	45

VENTUM NS1 ROAD BIKE FRAMESET SERVICE

SERVICE DOCUMENTS

NS1 - SERVICE Product Manual

SRAM Resources

ZIPP Resources

CONTACT SUPPORT

"Ironman Sweden was my first race on my new bike from Ventum, a Shimano Dura Ace 12-speed. The aero comfort is easy to adjust to the perfect fit and with the fantastic disc brakes it is easy to keep a good rhythm through the corners. With the Ventum One, I achieved my fastest bike split at Ironman Sweden."

- Jesper Svensson

“There is nothing I would rather use to sail the gravel seas of eastern Nebraska than my GS1 (except for maybe a tandem). Its smooth comfort allowed me to carry my speed and momentum over the tops of every one of the endless rollers on the Gravel Worlds course. I was able to open gaps through the loose corners all day long, thanks to the bike’s stability and nimble handling, and there’s just no arguing with a 22 mph average speed over 150 miles, with 11,000 feet of elevation gain, on a course that’s 98% gravel, on my way to 2nd place out of a very talented pro field."

- John Borstelmann

"The GS1 is everything I want in a gravel bike. The combination of smooth cruising on pavement and steady rolling over rowdy terrain makes it the most dynamic bike. From champagne gravel to chunky single track, my GS1 has performed beautifully through it all. Let’s not forget that it has ample tire clearance and is aesthetically stunning!"

- Lindsey Stevenson

SUPPORT

We Stand Behind Our Products

Ventum stands behind the quality our bikes, engineering, and all of our products. Each item is meticulously desined in-house by our team of passionate riders. Our goal is to elevate your experience and to deliver products that can withstand all normal rugged wear and tear that comes with competing in a triathlon, running a crit series, or enjoying a long gravel road to nowhere.

If you are not satisfied with your order, contact our customer support team about our 30-day return policy or let us know how we can make Ventum better.

Sizing

&nbsp

Ordering, Shipping, Warranty, & Returns

&nbsp

Lead time varies depending on the build specs and component availability. Please reach out to support@ventumracing.com for more information.

&nbsp

For Standard shipping in the continental US, Ventum uses a custom, oversized bike box and the bike will arrive 98% assembled. You simply need to install the wheels and seatpost and you’ll be ready to ride. A torque wrench is required.

For bikes shipped outside of the continental US, the bike will arrive 85% assembled. Upon delivery, you will need to install the wheels, seatpost, and the stem onto the steerer tube.

Financing & Trade-Ups

&nbsp

Submit your bike directly to The Pro’s Closet, and share their offer with support@ventumracing.com. The trade-up value will be deducted from your order total. We’ll need to email you a custom invoice, so don’t order online before speaking with Ventum Support. The trade-up bike will need to be shipped to The Pro’s Closet within 2 weeks–we supply the shipping label.

&nbsp

Yes, we offer financing through Klarna for most customers in the USA.

General Product Information

&nbsp

2025 GS1 - Tire clearance to700x56c in the front and 700x50c in the rear.

NS1 - Tires measuring up to 35mm in width (700x35C)

Legacy GS1 - Tires measuring up to 48mm in width (700x48C)*

Ventum One Disc - 28mm max (700x28C)

&nbsp

NS1 and Ventum One Disc builds will be set up tubeless when upgraded to carbon wheelsets. Alloy wheels are setup with inner tubes and clincher tires.

All GS1 builds will be set up tubeless regardless of the wheelset.
