The Ventum GS1 Red XPLR gravel bike is built with SRAM’s top-end groupset and gravel wheels.
The Ventum GS1 Red XPLR gravel bike is built with SRAM’s top-end groupset and gravel wheels.

GS1 RED XPLR

No reviews yet Write a Review

The most capably-fast gravel bike you’ve ever ridden, the Ventum GS1 Red XPLR gravel bike is built with SRAM’s top-end Red XPLR AXS 1x13-speed gravel groupset, delivering a monster gear range in an ultralight package.

A lean and mean choice for when the road less traveled becomes the road almost never traveled, the Ventum GS1 Red XPLR gravel bike lends confidence for when you need it most.



READ MORE

$8,599.00
CUSTOMIZE YOUR FIT (OPTIONAL)+
Do you want a specific crank length and/or handlebar size? Our bikes come stock with touchpoints that fit most riders, but you can choose your bar/stem size and crank length for a small fee. Questions? Reach out to support for help.
WHAT IS THE STOCK FIT?
Finance with Klarna
Pay over time with monthly financing*
*Monthly financing through Klarna issued by WebBank.
Ride-Ready Shipping
New bike day, shipped direct to your door. Each bike is pre-assembled and tuned by a professional mechanic before being packed into our custom ride-ready box (lower 48 US States only). Assembly is easy — just attach the wheels and insert the seatpost.
30-Day Returns
Change your mind? Return your bike within 30-days of purchase.
Limited Lifetime Warranty
We stand behind our bikes. Ventum offers a limited lifetime warranty on all of our frames, forks, and seat posts to the original owner which covers against defects in materials and workmanship.
Selected Colors is
Hurry up! only left
Adding to cart… The item has been added

Copy link:

The Ventum GS1 Red XPLR gravel bike is built with SRAM’s top-end groupset and gravel wheels.

GS1 RED XPLR

$8,599.00
Choose Options
Choose Options
OVERVIEW FEATURES SPECS SIZING GEOMETRY SUPPORT
OVERVIEW+
FEATURES+
SPECS+
SIZING+
GEOMETRY+
SUPPORT+

ABOUT THE VENTUM GS1 RED XPLR



Inspired by our NS1 road bike and tweaked to inspire confidence on variable terrain, the Ventum GS1 gravel bike is a blend of road speed dipped in gravel capability. It’s fast, but stable; snappy, but predictable. It’s a bike with one foot in two worlds — a wonderful balance that’ll take you there and back, but faster. It might just be the only bike you need.

WHAT YOU GET

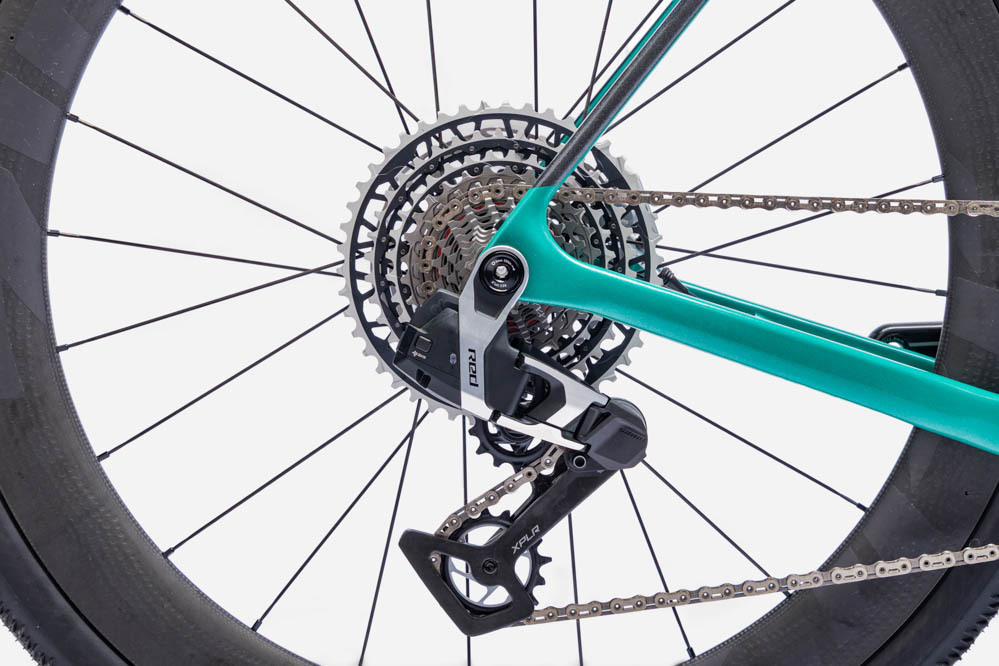

• SRAM Red XPLR AXS 1x13-speed electronic drivetrain
• ZIPP 303 XPLR SW carbon race wheels
• Ventum CR5 carbon one-piece bar/stem combo
• A  full carbon fiber frame with intuitive internal cable routing
• Tire clearance to 700x48c


VENTUM CUSTOMER SUPPORT + RIDE READY SHIPPING



Each Ventum bike begins life at our facility in Heber City, Utah, at the doorstep of some of the best riding this side of… anywhere.



No matter the build, any bike we send out into the world is first built, checked, and thoroughly tuned by a professional mechanic. With a bill of good health, it’s then repackaged into a specially-made ride-ready box designed to transport the bike to the rider with as little disassembly as possible. In the end, all you need to do is attach the front wheel, insert the seat post, and dial in your fit.



We’re here to help along the way. From picking your bike to support down the road, the Ventum customer support team is here for anything you need.



VENTUM GS1 RED XPLR FEATURES

VENTUM RACE GEOMETRy

The GS1’s geometry is something we hold near and dear to our hearts at Ventum. Adored by our pro riders and obsessed over by our engineers, it’s quick in corners yet wonderfully predictable and stable at high speeds over variable terrain.


We describe the bike as “confidently quick.” Ride it, and you’ll know what we mean.

TIRE CLEARANCE TO 700x48c

In gravel, bigger is better. The GS1 is designed to accomidate up to 700x48c tires with mud clearance to spare. Float on chunk, surf through mud — do it all faster than everyone else.

VENTUM GS1 - SRAM RED XPLR AXS - SPECIFICATIONS

FRAMESET
FRAME
Ventum GS1 gravel frame | Full carbon fiber construction | Internal cable routing | T47 threaded BB | Flat mount disc brake | UDH
FORK
Ventum GS1 fork | Tapered carbon steerer | Internal brake routing | Flat mount disc brake | Carbon dropouts
WHEELS
FRONT WHEEL
ZIPP 303 XPLR S | Tubeless, disc brake | Carbon
REAR WHEEL
ZIPP 303 XPLR SW | Tubeless, disc brake | Carbon | XDR Driver
TIRES
Goodyear XPLR Inter | 700x45c
MAX TIRE SIZE
700x48c
DRIVETRAIN
SHIFTERS
SRAM Red XPLR AXS | 1x13 speed | Electronic shifting
FRONT DERAILLEUR
N/A
REAR DERAILLEUR
SRAM Red XPLR AXS | 1x13 speed | Electronic shifting
CRANK
XS: SRAM Red XPLR Crankset | 42T chainring | 165mm crank length | Power meter included
S: SRAM Red XPLR Crankset | 42T chainring | 165mm crank length | Power meter included
M: SRAM Red XPLR Crankset | 42T chainring | 170mm crank length | Power meter included
M/L: SRAM Red XPLR Crankset | 42T chainring | 170mm crank length | Power meter included
L: SRAM Red XPLR Crankset | 42T chainring | 172.5mm crank length | Power meter included
XL: SRAM Red XPLR Crankset | 42T chainring | 172.5mm crank length | Power meter included
BOTTOM BRACKET
SRAM DUB T47
CASSETTE
SRAM Red XPLR | 10-46T
CHAIN
SRAM Red 12-speed chain
COMPONENTS
HANDLEBAR / STEM
XS: VENTUM CR5 Integrated Cockpit | 40x90
S: VENTUM CR5 Integrated Cockpit | 40x90
M: VENTUM CR5 Integrated Cockpit | 42x90
M/L: VENTUM CR5 Integrated Cockpit | 42x90
L: VENTUM CR5 Integrated Cockpit | 42x90
XL: VENTUM CR5 Integrated Cockpit | 44x100
SADDLE
Vento Argo R5 | 150mm
SEATPOST
Ventum carbon post | 0° offset
HANDLEBAR TAPE
FSA Powertouch, black
COMPUTER MOUNT
Sold Sperately
BRAKES
SRAM Red AXS | Hydraulic
BRAKE ROTORS
SRAM Centerlock Paceline X | 160mm Front /160mm Rear
STOCK FIT INFORMATION
XS
165mm crank length | 40cm bar length | 90mm stem length
S
165mm crank length | 40cm bar length | 90mm stem length
M
170mm crank length | 42cm bar length | 90mm stem length
M/L
170mm crank length | 42cm bar length | 90mm stem length
L
172.5mm crank length | 42cm bar length | 90mm stem length
XL
172.5mm crank length | 44cm bar length | 100mm stem length

Please note: Ventum reserves the right to make changes to the information listed on this page at any time. This includes spec, pricing, color, and any other product details. Due to supply chain issues, compatible parts may be substituted at any time without notice.

VENTUM GS1 SIZING GUIDE


 We offer six sizes of the GS1 road bike so (most) riders can find the perfect fit. Use the chart below to find the correct frame size based on your height.



VENTUM GS1 SRAM XPLR AXS GEOMETRY

FRAME SIZE XS S M M/L L XL
(A) STACK 506 522 545 570 589 604
(B) REACH 369 375 384 393 402 411
(C) HEAD TUBE LENGTH 90 105 128 150 166 180
(D) CHAINSTAY LENGTH 420 420 420 420 420 420
(E) FRONT CENTER 594 601 614 622 627 636
(F) WHEELBASE 1004 1012 1024 1032 1037 1046
(G) BOTTOM BRACKET DROP 70 70 70 70 70 70
(H) SEAT TUBE ANGLE 72.5° 72.5° 72.5° 72.5° 72.5° 72.5°
(I) HEAD TUBE ANGLE 69° 69.5° 70° 71° 72° 72.5°
(J) TOP TUBE LENGTH, Horizontal 529 540 556 573 588 601
(K) SEAT TUBE LENGTH 485 502 525 550 569 584
(L) STAND OVER HEIGHT 769 786 808 833 852 866
(M) TRAIL 87.9/83.3 84.6/79.9 81.2/76.5 74.6/69.9 68/63.3 64.7/59.9
(N) FORK LENGTH, FULL 395 395 395 395 395 395
(O) FORK OFFSET (Not Shown) 45/50 45/50 45/50 45/50 45/50 45/50

VENTUM GS1 RED XPLR SERVICE



VENTUM GS1 - SRAM RED XPLR AXS - ZIPP 303 XPLR SW

CONTACT SUPPORT

Related Products
Sage Mod Gravel Bottle
$13.00
Purveyors of Gravel Tees (Men's)
$28.00
Ventum x WYN Republic Men's Permium Jersey (Rose)
$139.00 $110.00
Ventum X Pedal Mafia Spray Jacket
$129.99


Home Reviews 1

"Ironman Sweden was my first race on my new bike from Ventum, a Shimano Dura Ace 12-speed. The aero comfort is easy to adjust to the perfect fit and with the fantastic disc brakes it is easy to keep a good rhythm through the corners. With the Ventum One, I achieved my fastest bike split at Ironman Sweden."

- Jesper Svensson

Home Reviews 2

“There is nothing I would rather use to sail the gravel seas of eastern Nebraska than my GS1 (except for maybe a tandem). Its smooth comfort allowed me to carry my speed and momentum over the tops of every one of the endless rollers on the Gravel Worlds course. I was able to open gaps through the loose corners all day long, thanks to the bike’s stability and nimble handling, and there’s just no arguing with a 22 mph average speed over 150 miles, with 11,000 feet of elevation gain, on a course that’s 98% gravel, on my way to 2nd place out of a very talented pro field."

- John Borstelmann

Home Reviews 3

"The GS1 is everything I want in a gravel bike. The combination of smooth cruising on pavement and steady rolling over rowdy terrain makes it the most dynamic bike. From champagne gravel to chunky single track, my GS1 has performed beautifully through it all. Let’s not forget that it has ample tire clearance and is aesthetically stunning!"

- Lindsey Stevenson

SUPPORT

We Stand Behind Our Products

Ventum stands behind the quality our bikes, engineering, and all of our products. Each item is meticulously desined in-house by our team of passionate riders. Our goal is to elevate your experience and to deliver products that can withstand all normal rugged wear and tear that comes with competing in a triathlon, running a crit series, or enjoying a long gravel road to nowhere.

If you are not satisfied with your order, contact our customer support team about our 30-day return policy or let us know how we can make Ventum better.

Sizing

&nbsp

Ordering, Shipping, Warranty, & Returns

&nbsp

Lead time varies depending on the build specs and component availability. Please reach out to support@ventumracing.com for more information.

&nbsp

For Standard shipping in the continental US, Ventum uses a custom, oversized bike box and the bike will arrive 98% assembled. You simply need to install the wheels and seatpost and you’ll be ready to ride. A torque wrench is required.

For bikes shipped outside of the continental US, the bike will arrive 85% assembled. Upon delivery, you will need to install the wheels, seatpost, and the stem onto the steerer tube.

Financing & Trade-Ups

&nbsp

Submit your bike directly to The Pro’s Closet, and share their offer with support@ventumracing.com. The trade-up value will be deducted from your order total. We’ll need to email you a custom invoice, so don’t order online before speaking with Ventum Support. The trade-up bike will need to be shipped to The Pro’s Closet within 2 weeks–we supply the shipping label.

&nbsp

Yes, we offer financing through Klarna for most customers in the USA.

General Product Information

&nbsp

Ventum One Disc - 28mm max (700x28C)

NS1 - Tires measuring up to 35mm in width (700x35C)

GS1 - Tires measuring up to 48mm in width (700x48C) *The GS1 can run 650b wheels, with tires measuring up to 51 mm in width

&nbsp

NS1 and Ventum One Disc builds will be set up tubeless when upgraded to carbon wheelsets. Alloy wheels are setup with inner tubes and clincher tires.

All GS1 builds will be set up tubeless regardless of the wheelset.
