Electric

SHIMANO EP801 SERIES MOTOR, BATTERY + 1 X 12 DRIVETRAIN




REALIZED IN
STONE
ONLY $5,999
THE ALL-NEW ES1G FEATURES
CLASS 3 E-BIKE: PEDAL ASSIST UP TO 28MPH
CLEARANCE UP TO 700 X 50C TIRES
3 DIFFERENT MODES (ECO, TRAIL, & BOOST)
MULTIPLE MOUNTS FOR CAGES & CARGO STORAGE
SHIMANO EP801 SERIES MOTOR, BATTERY
12-SPEED DRIVETRAIN, ULTEGRA DI2 SHIFTERS, 12-SPEED XT DI2 REAR DERAILLEUR.
SEMI-INTEGRATED CABLE ROUTING
SRAM UDH & DIRECT MOUNT DERAILLEUR HANGER

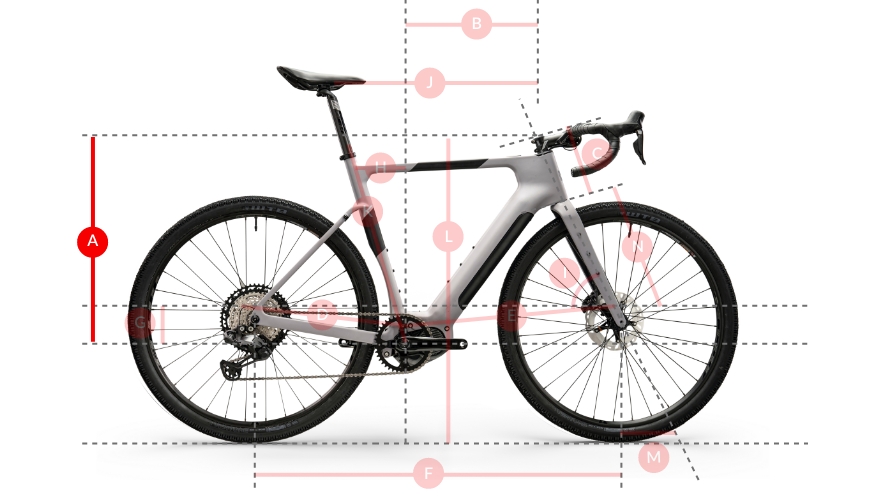

GEOMETRY & SIZING

FRAME SIZE XS S M M/L L XL
(A) STACK 506mm 522mm 545mm 570mm 589mm 604mm
(B) REACH 399mm 405mm 414mm 423mm 432mm 441mm
(C) HEAD TUBE LENGTH 90mm 105mm 128mm 150mm 166mm 180mm
(D) CHAINSTAY LENGTH 435mm 435mm 435mm 435mm 435mm 435mm
(E) FRONT CENTER 624mm 631mm 644mm 652mm 657mm 665mm
(F) WHEELBASE 1049mm 1057mm 1069mm 1077mm 1083mm 1091mm
(G) BOTTOM BRACKET DROP 70mm 70mm 70mm 70mm 70mm 70mm
(H) SEAT TUBE ANGLE 72.5° 72.5° 72.5° 72.5° 72.5° 72.5°
(I) HEAD TUBE ANGLE 69° 69.5° 70° 71° 72° 72.5°
(J) TOP TUBE LENGTH, Horizontal 559mm 570mm 586mm 603mm 618mm 631mm
(K) SEAT TUBE LENGTH 531mm 547mm 571mm 598mm 618mm 633mm
(L) STAND OVER HEIGHT 776mm 792mm 815mm 839mm 858mm 872mm
(M) TRAIL 86 82 79 72 65 62
(N) FORK LENGTH, FULL 395mm 395mm 395mm 395mm 395mm 395mm
(O) FORK OFFSET (Not Shown) 50 50 50 50 50 50

THE VENTUM BOUTIQUE

A curated selection of apparel and accessories for on or off the bike.



SUPPORT


We Stand Behind Our Products

Ventum stands behind the quality our bikes, engineering, and all of our products. Each item is meticulously designed in-house by our team of passionate riders. Our goal is to elevate your experience and to deliver products that can withstand all normal rugged wear and tear that comes with competing in a triathlon, running a crit series, or enjoying a long gravel road to nowhere.

If you are not satisfied with your order, contact our customer support team about our 30-day return policy or let us know how we can make Ventum better.

Sizing

&nbsp
&nbsp
&nbsp

Ordering, Shipping, Warranty, & Returns

&nbsp

Lead time varies depending on the build specs and component availability. Please reach out to support@ventumracing.com for more information.

&nbsp

It can take up to 30 days to process a return or refund.

&nbsp

For Standard shipping in the continental US, Ventum uses a custom, oversized bike box and the bike will arrive 98% assembled. You simply need to install the wheels and seatpost and you’ll be ready to ride. A Torque wrench is required.

For bikes shipped outside of the continental US, the bike will arrive 85% assembled. Upon delivery, you will need to install the wheels, seatpost, and the stem onto the steerer tube.

&nbsp

General Product Information

&nbsp

Your frameset order will include the frame, fork, seatpost, headset assembly, and thru axles. NS1 frameset typically come with a 25mm setback seatpost, whereas the GS1 frame comes with a zero-offset (straight) seatpost.

Ventum One Disc framesets come with the complete cockpit (base bar, aero extensions, arm pads, etc).

NS1 framesets do not include our integrated, one-piece handlebar. Those can sometimes be purchased separately if our inventory allows for it. Contact support@ventumracing.com for more information

&nbsp

Ventum does not provide quotes on bike weights, as custom builds vary immensely due to our options available to upgrade components. Please reach out to support@ventumracing.com with further questions pertaining to weight figures regarding bike builds.

&nbsp

Ventum One Disc - 28mm max (700x28C)

NS1 - Tires measuring up to 35mm in width (700x35C)

GS1 - Tires measuring up to 48mm in width (700x48C) *The GS1 can run 650b wheels, with tires measuring up to 51 mm in width)

&nbsp

NS1 and Ventum One Disc builds will be set up tubeless when upgraded to carbon wheelsets. Alloy wheels are setup with inner tubes and clincher tires.

All GS1 builds will be set up tubeless regardless of the wheelset.

&nbsp

The NS1 is typically equipped with 700x28C or 700x30C tires. The specific tire is subject to change depending on availability. Reach out to support@ventumracing.com for more information.

The GS1 will be equipped with tubeless gravel tires, typically on size 700x42C

&nbsp

Ventum does not offer custom paint options, but we do offer an array of color options for each bike type.

&nbsp

Please contact Ventum Support with the model and size you are looking to test and we will help set up your demo ride. If we don't have your size available in our fleet, we can recommend a local partner who does.

&nbsp

We do not build and ship bikes without wheels. The alloy training wheels are included in the cost of each bike and cannot be removed for a discount.

&nbsp

Currently, chainrings and cassettes are offered in one option for each groupset due to ongoing supply chain issues with the cycling industry.

&nbsp

Yes. Please reach out to support@ventumracing.com to request which seatpost you prefer. Ventum will use the 25mm setback seatpost by default. NS1 and GS1 seatposts are interchangeable.

&nbsp

The NS1 and GS1 typically feature a Fizik Tempo Argo saddle. The Ventum One Disc uses an ISM tri-specific saddle. Specific saddle models are subject to change based on availability.
